SMA4F33A
lmages are for reference only.SMA4F33A
TVS DIODE 33VWM 69.7VC SMAFLAT
DatasheetDO-221AC, SMA Flat Leads
57,673 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
69.7V Clamp 7.5A Ipp Tvs Diode Surface Mount SMAflat
SMA4F33A
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | STMicroelectronics |
| Series | SMA4F, TRANSIL™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 33V |
| Voltage - Breakdown (Min) | 36.7V |
| Voltage - Clamping (Max) @ Ipp | 69.7V |
| Current - Peak Pulse (10/1000µs) | 7.5A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-221AC, SMA Flat Leads |
| Supplier Device Package | SMAflat |
| Base Product Number | SMA4F33 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

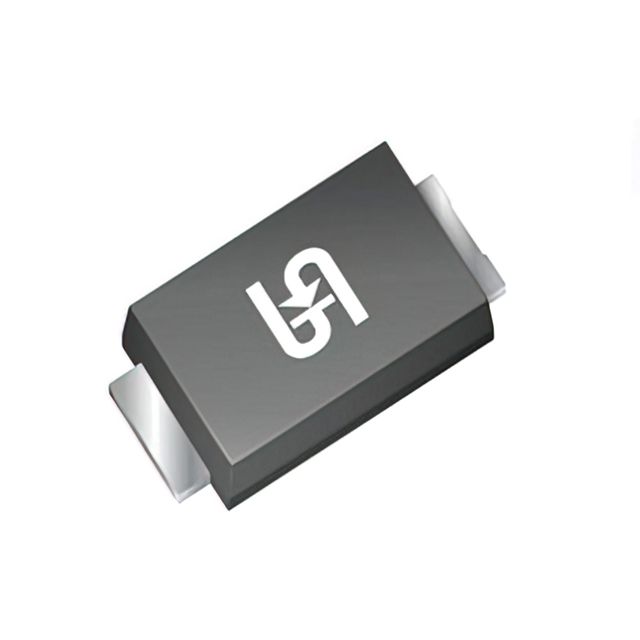

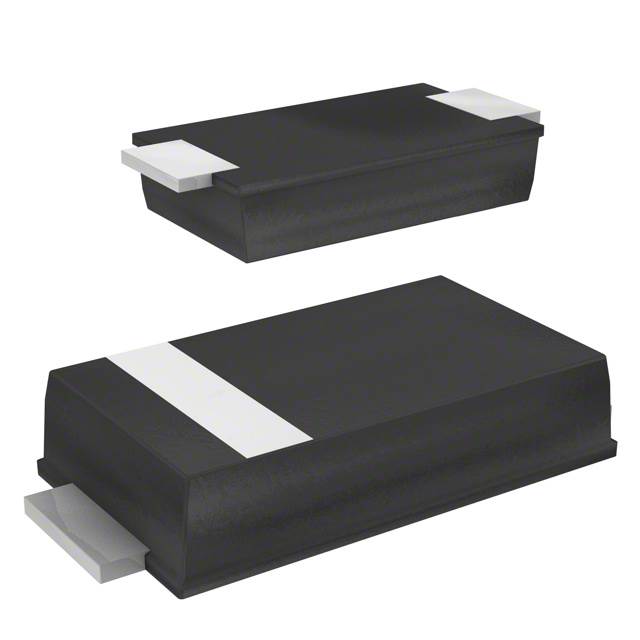

| Part Number | SMA4F33AH | SMA4F33AY | SMA4F100A | SMA4F100AY |
| Manufacturer | Taiwan Semiconductor Corporation | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | 400W, 38.9V, 5%, UNIDIRECTIONAL, | TVS DIODE 33VWM 53.3VC SMAFLAT | TVS DIODE 100VWM 162VC SMAFLAT | TVS DIODE 100VWM 162VC SMAFLAT |
| Series | Taiwan Semiconductor Corporation | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
