Product CatalogPart Number
SMA5118
Manufacturer
Sanken Electric USA Inc.Description
MOSFET 6N-CH 500V 5A 12SIP
Datasheet
DatasheetPackage
12-SIP
In Stock
77,655 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SMA5118
SMA5118
lmages are for reference only.Payment Methods
Delivery Services
Mosfet Array 500V 5A 4W Through Hole 12-SIP
Quick Inquiry
SMA5118
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Sanken Electric USA Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 6 N-Channel (3-Phase Bridge) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 500V |
| Current - Continuous Drain (Id) @ 25°C | 5A |
| Rds On (Max) @ Id, Vgs | 1.4Ohm @ 2.5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Input Capacitance (Ciss) (Max) @ Vds | 770pF @ 10V |
| Power - Max | 4W |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 12-SIP |
| Supplier Device Package | 12-SIP |
| Base Product Number | SMA51 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | SMA5112 | SMA5113 | SMA5117 | SMA5106 |
| Manufacturer | Sanken Electric USA Inc. | Sanken Electric USA Inc. | Sanken Electric USA Inc. | Sanken Electric USA Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | MOSFET 6N-CH 250V 7A 12SIP | MOSFET 4N-CH 450V 7A 12SIP | MOSFET 6N-CH 250V 7A 12SIP | MOSFET 4N-CH 100V 4A 12SIP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products
SMA5106
Sanken Electric USA Inc.
SMA5112
Sanken Electric USA Inc.
SMA5113
Sanken Electric USA Inc.
SMA5117
Sanken Electric USA Inc.
SMA5125
Sanken Electric USA Inc.
SMA5127
Sanken Electric USA Inc.

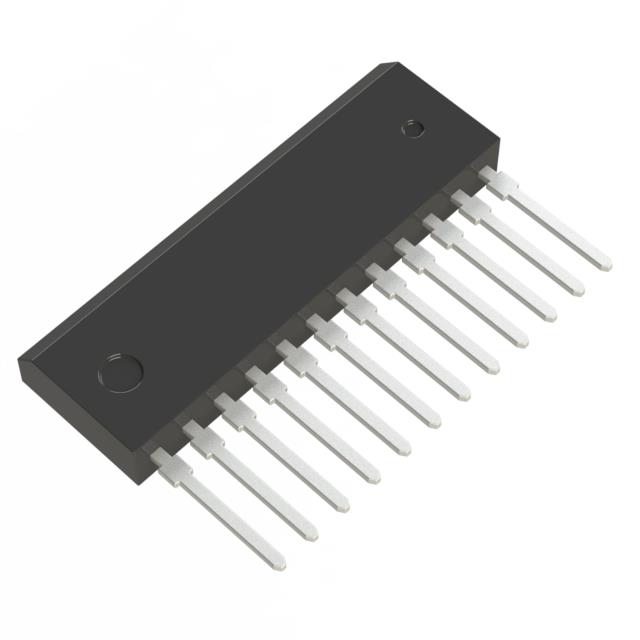

SMA5131
