SMA511W G/W
lmages are for reference only.SMA511W G/W
0.51" SGL SMD DISPLAY - WHITE
Datasheet10-SMD, No Lead
78,301 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric White 7-Segment 1 Character Common Anode 3.2V 5mA 0.610" H x 0.482" W x 0.157" D (15.50mm x 12.25mm x 4.00mm) 10-SMD, No Lead
SMA511W G/W
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | American Opto Plus LED |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 1 |
| Size / Dimension | 0.610" H x 0.482" W x 0.157" D (15.50mm x 12.25mm x 4.00mm) |
| Digit/Alpha Size | 0.51" (13.00mm) |
| Display Type | 7-Segment |
| Common Pin | Common Anode |
| Color | White |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Current - Test | 5mA |
| Millicandela Rating | 30mcd |
| Wavelength - Peak | - |
| Power Dissipation (Max) | 120mW |
| Package / Case | 10-SMD, No Lead |
| Base Product Number | SMA511 |
| Display Format | - |
| Product Attribute |  |
 |
 |
 |

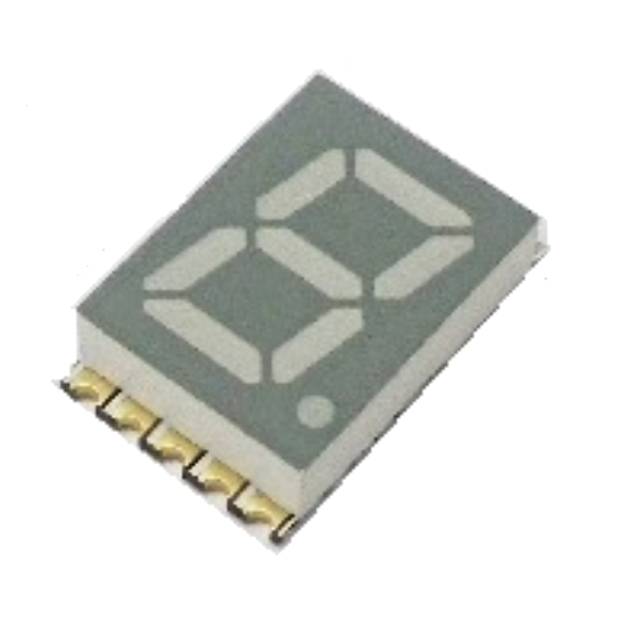

| Part Number | SMA511LA G/W | SMA511LB G/W | SMA511LE G/W | SMA511LR G/W |
| Manufacturer | American Opto Plus LED | American Opto Plus LED | American Opto Plus LED | American Opto Plus LED |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 0.51" SGL SMD DISPLAY - AMBER | 0.51" SGL SMD DISPLAY - BLUE | 0.51" SGL SMD DISPLAY - RED | 0.51" SGL SMD DISPLAY - S-RED |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
