SMA6F12A-M3/6A
lmages are for reference only.SMA6F12A-M3/6A
TVS DIODE 12VWM 23.5VC DO221AC
DatasheetDO-221AC, SMA Flat Leads
32,649 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
23.5V Clamp 157A (8/20µs) Ipp Tvs Diode Surface Mount DO-221AC (SlimSMA)
SMA6F12A-M3/6A
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | TransZorb® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 12V |
| Voltage - Breakdown (Min) | 13.3V |
| Voltage - Clamping (Max) @ Ipp | 23.5V |
| Current - Peak Pulse (10/1000µs) | 157A (8/20µs) |
| Power - Peak Pulse | 4000W (4kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-221AC, SMA Flat Leads |
| Supplier Device Package | DO-221AC (SlimSMA) |
| Base Product Number | SMA6F12 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

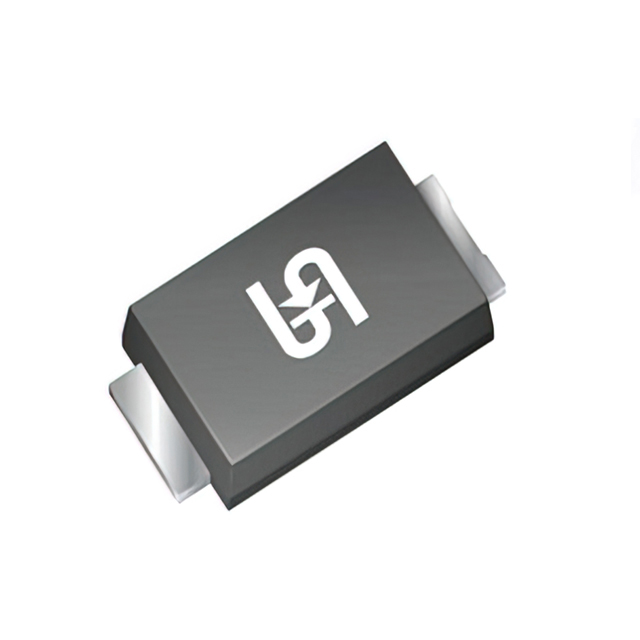

| Part Number | SMA6F12A-M3/6B | SMA6F12A | SMA6F12A-TP | SMA6F12AH |
| Manufacturer | Vishay General Semiconductor - Diodes Division | STMicroelectronics | Micro Commercial Co | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 12VWM 23.5VC DO221AC | TVS DIODE 12VWM 19.9VC SMAFLAT | TVS DIODE 12VWM 18.5VC DO221AC | 600W, 14.1V, 5%, UNIDIRECTIONAL, |
| Series | Vishay General Semiconductor - Diodes Division | STMicroelectronics | Micro Commercial Co | Taiwan Semiconductor Corporation |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
