Product CatalogPart Number
SMA77-1
Manufacturer
MACOM Technology SolutionsDescription
IC RF AMP GPS 2MHZ-700MHZ SMD
Datasheet
DatasheetPackage
4-SMD Module
In Stock
49,399 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

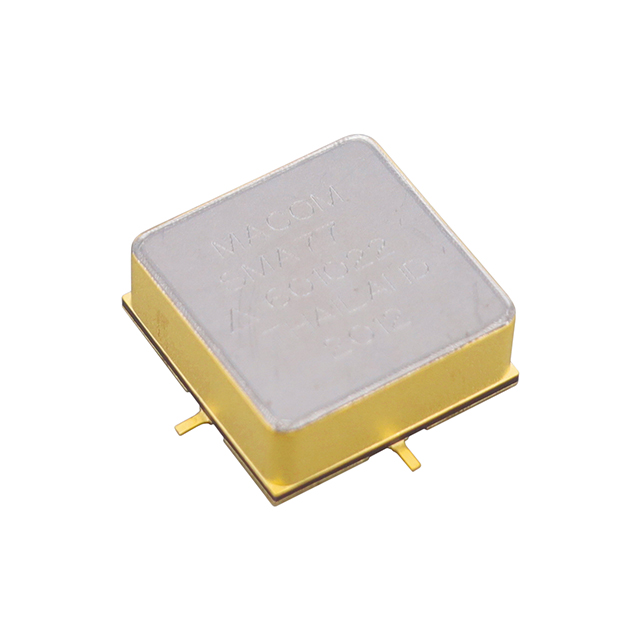

SMA77-1
SMA77-1
lmages are for reference only.Payment Methods
Delivery Services
RF Amplifier IC General Purpose 2MHz ~ 700MHz
Quick Inquiry
SMA77-1
Specifications
| Category | RF and Wireless - RF Amplifiers - |
| Manufacturer | MACOM Technology Solutions |
| Series | SMA77-1 |
| Packaging | Tray |
| RoHS Status | |
| Frequency | 2MHz ~ 700MHz |
| P1dB | 16.5dBm |
| Gain | 16dB |
| Noise Figure | 5dB |
| RF Type | General Purpose |
| Voltage - Supply | 15V |
| Current - Supply | 50mA |
| Test Frequency | 2MHz ~ 700MHz |
| Mounting Type | - |
| Package / Case | 4-SMD Module |
| Supplier Device Package | - |
| Base Product Number | SMA77 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

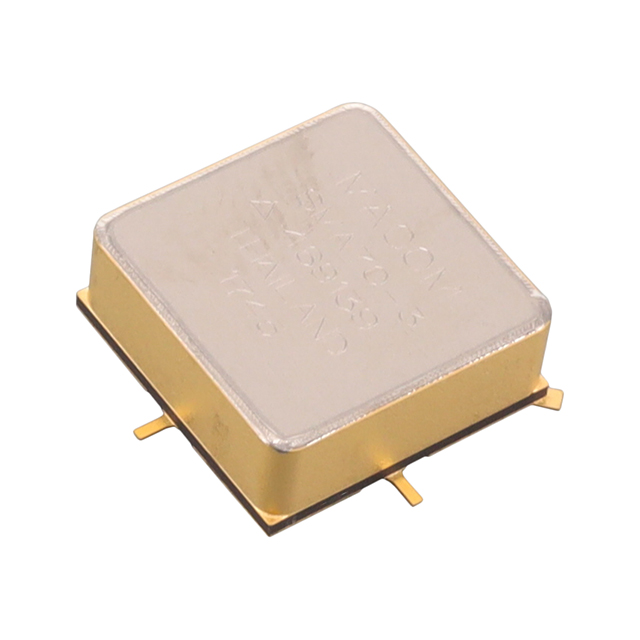

| Part Number | SMA70 | SMA70-1 | SMA70-2 | SMA70-3 |
| Manufacturer | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions |
| RoHS Status | ||||
| Description | IC RF AMP GPS 10MHZ-300MHZ SMD | IC RF AMP GPS 5MHZ-300MHZ SMD | IC RF AMP GPS 10MHZ-300MHZ SMD | IC RF AMP GPS 15MHZ-300MHZ SMD |
| Series | SMA70 | SMA70-1 | SMA70-2 | SMA70-3 |
| Packaging | Tray | Tray | Tray | Tray |
