Product CatalogPart Number
SMAJ170A-A
Manufacturer
Yenyo TechnologyDescription
TVS 400W DIODE 170VWM Uni-Dir DO
Datasheet
DatasheetPackage
DO-214AC, SMA
In Stock
44,745 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SMAJ170A-A
SMAJ170A-A

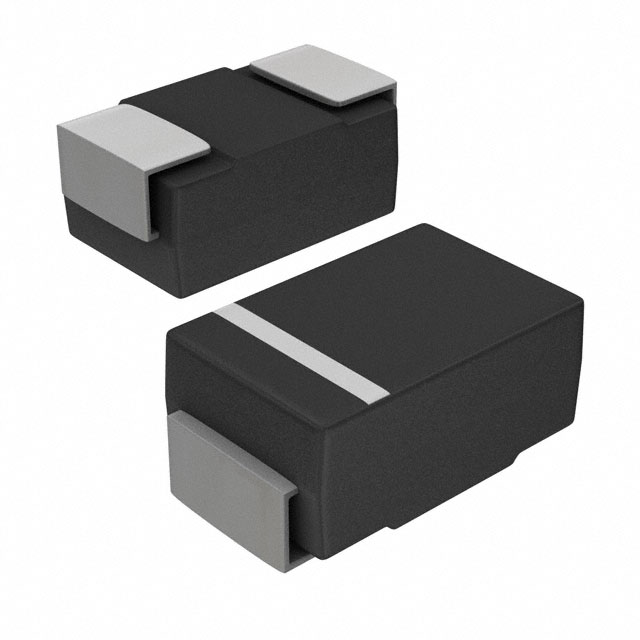

lmages are for reference only.Payment Methods
Delivery Services
275V Clamp 1.45A Ipp Tvs Diode Surface Mount DO-214AC (SMA)
Quick Inquiry
SMAJ170A-A
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Yenyo Technology |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 170V |
| Voltage - Breakdown (Min) | 189V |
| Voltage - Clamping (Max) @ Ipp | 275V |
| Current - Peak Pulse (10/1000µs) | 1.45A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
|
| Part Number | SMAJ170A-13 | SMAJ170A-13-F | SMAJ170A-AT/TR13 | SMAJ170A-AT/TR7 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | YAGEO | YAGEO |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 170VWM 275VC SMA | TVS DIODE 170VWM 275VC SMA | TVS DO-214AC 170V 275V AUTO | TVS DO-214AC 170V 275V AUTO |
| Series | Diodes Incorporated | Diodes Incorporated | YAGEO | YAGEO |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
