SMAJ26CHR3G

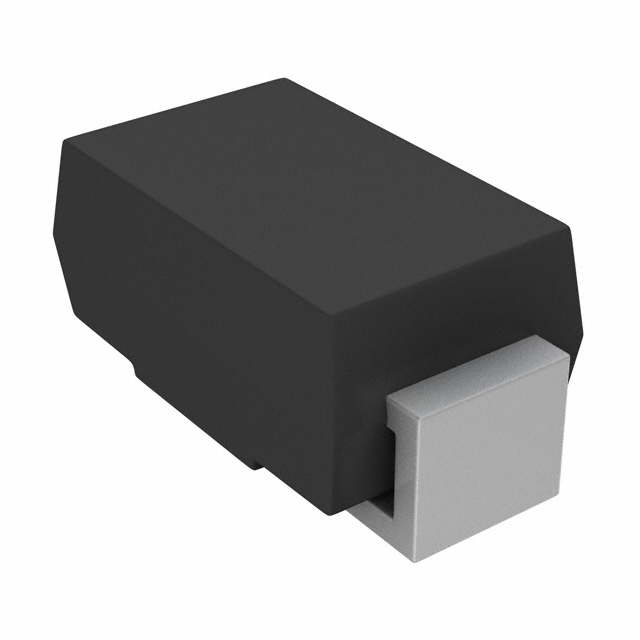

lmages are for reference only.SMAJ26CHR3G
TVS DIODE 26VWM 46.6VC DO214AC
DatasheetDO-214AC, SMA
51,487 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
46.6V Clamp 8.6A Ipp Tvs Diode Surface Mount DO-214AC (SMA)
SMAJ26CHR3G
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | SMAJ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 26V |
| Voltage - Breakdown (Min) | 28.9V |
| Voltage - Clamping (Max) @ Ipp | 46.6V |
| Current - Peak Pulse (10/1000µs) | 8.6A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Base Product Number | SMAJ26 |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |
| Part Number | SMAJ26CH | SMAJ26CHE3/5A | SMAJ26CHE3/61 | SMAJ20 |
| Manufacturer | Taiwan Semiconductor Corporation | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 26VWM 46.6VC DO214AC | TVS DIODE 26VWM 46.6VC DO214AC | TVS DIODE 26VWM 46.6VC DO214AC | 400W, 24.7V, 10%, UNIDIRECTIONAL |
| Series | Taiwan Semiconductor Corporation | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Taiwan Semiconductor Corporation |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
