SMAJ5.0CA

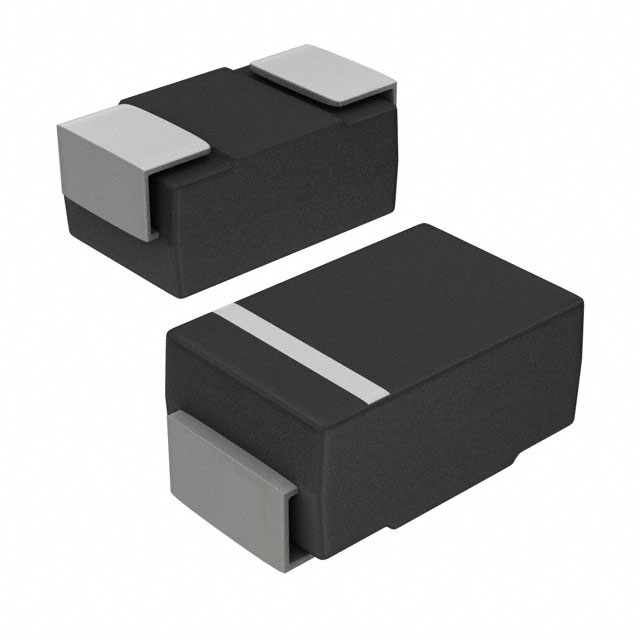

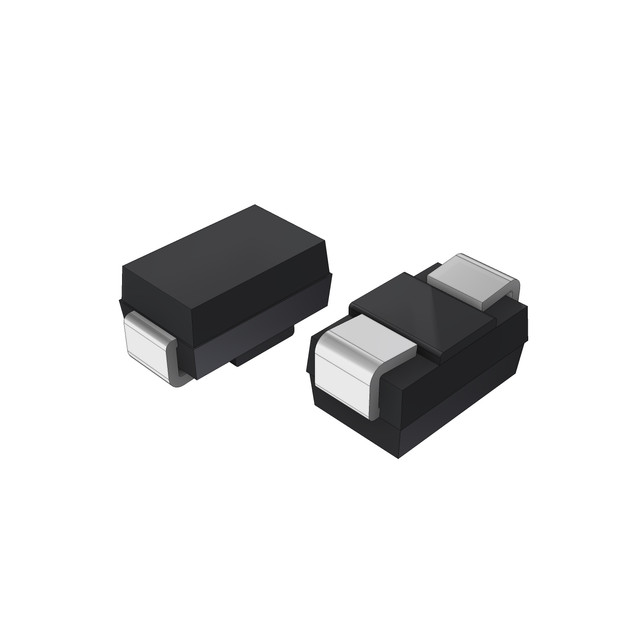

lmages are for reference only.SMAJ5.0CA
400W SURFACE MOUNT TRANSIENT VOL
DatasheetDO-214AC, SMA
84,935 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
9.2V Clamp 43.5A Ipp Tvs Diode Surface Mount DO-214AC (SMA)
SMAJ5.0CA
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | ANBON SEMICONDUCTOR (INT'L) LIMITED |
| Series | SMAJ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 5V |
| Voltage - Breakdown (Min) | 6.4V |
| Voltage - Clamping (Max) @ Ipp | 9.2V |
| Current - Peak Pulse (10/1000µs) | 43.5A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |
| Part Number | SMAJ5.0C | SMAJ5.0C | SMAJ5.0C-E3/5A | SMAJ5.0C-E3/61 |
| Manufacturer | Taiwan Semiconductor Corporation | Littelfuse Inc. | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 400W, 6.9V, 10%, BIDIRECTIONAL, | TVS DIODE 5VWM 9.66VC DO214AC | TVS DIODE 5VWM 9.6VC DO214AC | TVS DIODE 5VWM 9.6VC DO214AC |
| Series | Taiwan Semiconductor Corporation | Littelfuse Inc. | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
