SMAJE51A

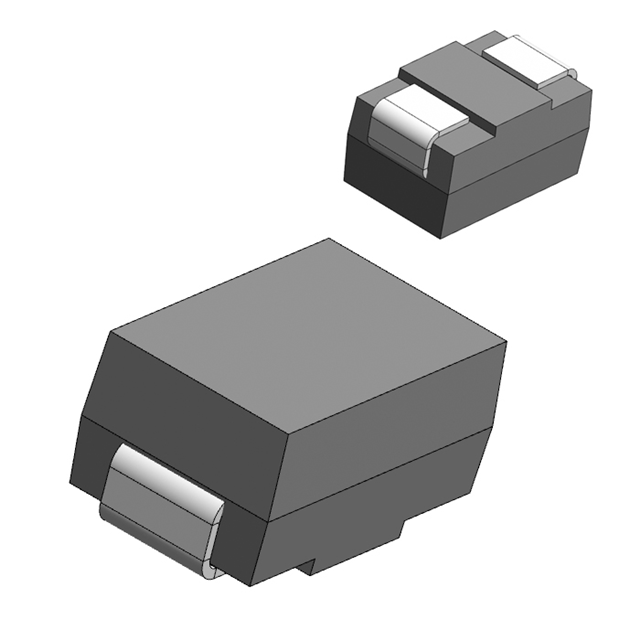

lmages are for reference only.SMAJE51A
TVS DIODE 51VWM 82.4VC SMA
DatasheetDO-214AC, SMA
99,221 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
82.4V Clamp 4.9A Ipp Tvs Diode Surface Mount SMA
SMAJE51A
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Eaton - Electronics Division |
| Series | SMAJE |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 51V |
| Voltage - Breakdown (Min) | 56.7V |
| Voltage - Clamping (Max) @ Ipp | 82.4V |
| Current - Peak Pulse (10/1000µs) | 4.9A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | Telecom |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | SMA |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
|
| Part Number | SMAJE51AH | SMAJE51CA | SMAJE51CAH | SMAJE100A |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | TVS DIODE 51VWM UNI | TVS DIODE 51VWM 82.4VC SMA | TVS DIODE 51VWM BI | TVS DIODE 100VWM 162VC SMA |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
