SMB15F20AY

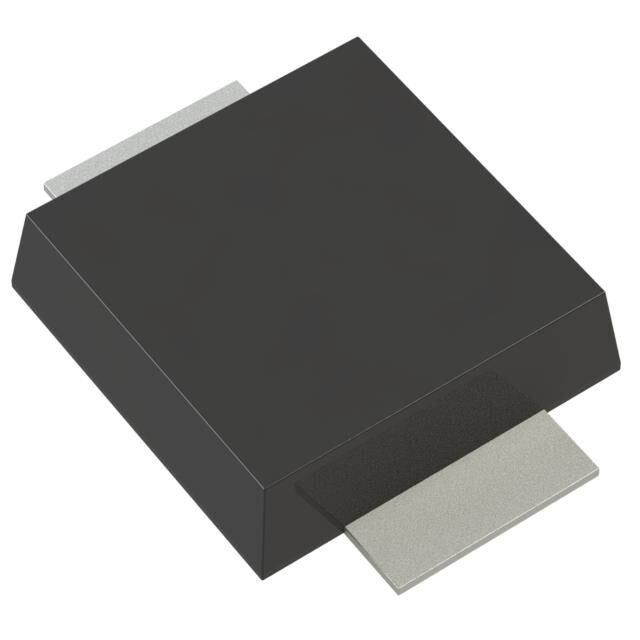

lmages are for reference only.SMB15F20AY
TVS DIODE 20VWM 42.8VC SMBFLAT
DatasheetDO-221AA, SMB Flat Leads
42,892 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
42.8V Clamp 234A (8/20µs) Ipp Tvs Diode Surface Mount SMBflat
SMB15F20AY
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | STMicroelectronics |
| Series | SMB15F |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 20V (Max) |
| Voltage - Breakdown (Min) | 22.2V |
| Voltage - Clamping (Max) @ Ipp | 42.8V |
| Current - Peak Pulse (10/1000µs) | 234A (8/20µs) |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-221AA, SMB Flat Leads |
| Supplier Device Package | SMBflat |
| Base Product Number | SMB15 |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |
| Part Number | SMB15F20A | SMB15F22A | SMB15F23A | SMB15F24A |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | |||
| Description | TVS DIODE 20VWM 32.4VC SMBFLAT | TVS DIODE 22VWM 48.3VC SMBFLAT | TVS DIODE 23VWM 49.2VC SMBFLAT | TVS DIODE 24VWM 50VC SMBFLAT |
| Series | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
