SMB6F8.5AY

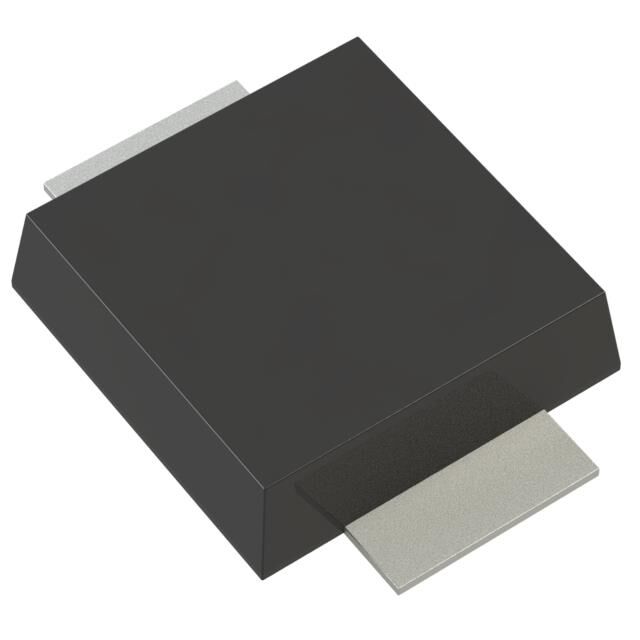

lmages are for reference only.SMB6F8.5AY
TVS DIODE 8.5VWM 14.4VC SMBFLAT
DatasheetDO-221AA, SMB Flat Leads
92,278 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
14.4V Clamp 41.7A Ipp Tvs Diode Surface Mount SMBflat
SMB6F8.5AY
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | STMicroelectronics |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 8.5V |
| Voltage - Breakdown (Min) | 9.4V |
| Voltage - Clamping (Max) @ Ipp | 14.4V |
| Current - Peak Pulse (10/1000µs) | 41.7A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-221AA, SMB Flat Leads |
| Supplier Device Package | SMBflat |
| Base Product Number | SMB6F8.5 |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
|
| Part Number | SMB6F8.5A | SMB6F100A | SMB6F100AY | SMB6F11AY |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | |||
| Description | TVS DIODE 8.5VWM 14.4VC SMBFLAT | TVS DIODE 100VWM 162VC SMBFLAT | TVS DIODE 100VWM 162VC SMBFLAT | TVS DIODE 11VWM 18VC SMBFLAT |
| Series | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
