SMBJ12-E3/52

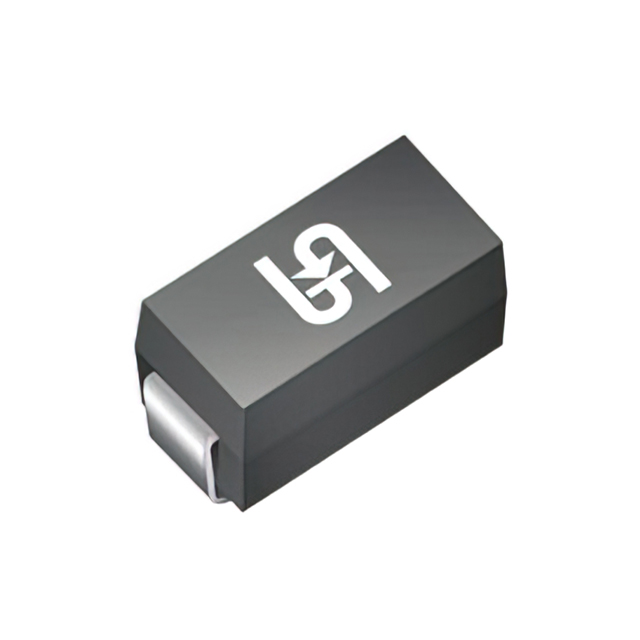

lmages are for reference only.SMBJ12-E3/52
TVS DIODE 12VWM 22VC DO214AA
DatasheetDO-214AA, SMB
87,705 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
22V Clamp 27.3A Ipp Tvs Diode Surface Mount DO-214AA (SMBJ)
SMBJ12-E3/52
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | TransZorb® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 12V |
| Voltage - Breakdown (Min) | 13.3V |
| Voltage - Clamping (Max) @ Ipp | 22V |
| Current - Peak Pulse (10/1000µs) | 27.3A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMBJ) |
| Base Product Number | SMBJ12 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | SMBJ12-E3/5B | SMBJ12 | SMBJ12 | SMBJ120 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Taiwan Semiconductor Corporation | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 12VWM 22VC DO214AA | 600W, 14.8V, 10%, UNIDIRECTIONAL | TVS DIODE 12VWM 20.9VC DO214AA | TVS DIODE 120VWM 202.65VC DO214 |
| Series | Vishay General Semiconductor - Diodes Division | Taiwan Semiconductor Corporation | Littelfuse Inc. | Littelfuse Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
