Product CatalogPart Number
SMBJ14AJ
Manufacturer
WeEn SemiconductorsDescription
SMBJ14A/SMB/REEL 13" Q1/T1 *STA
Datasheet
DatasheetPackage
DO-214AA, SMB
In Stock
61,907 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SMBJ14AJ
SMBJ14AJ
lmages are for reference only.Payment Methods
Delivery Services

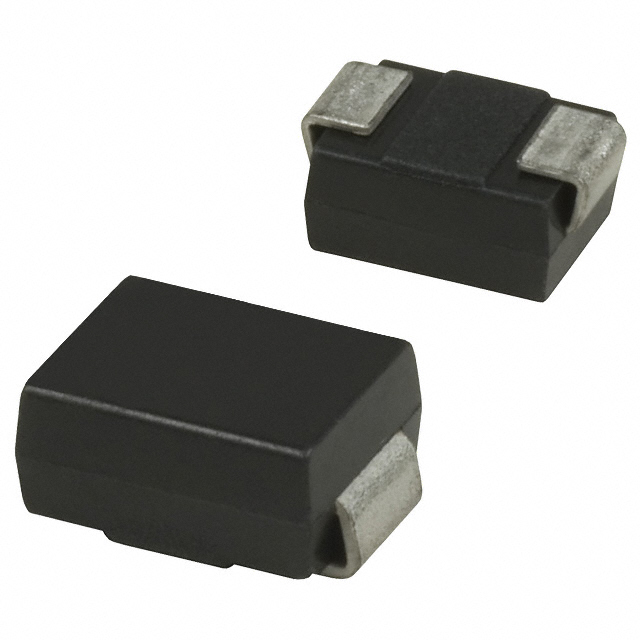

23.2V Clamp 25.9A Ipp Tvs Diode Surface Mount SMB
Quick Inquiry
SMBJ14AJ
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | WeEn Semiconductors |
| Series | SMBJ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 14V |
| Voltage - Breakdown (Min) | 15.75V |
| Voltage - Clamping (Max) @ Ipp | 23.2V |
| Current - Peak Pulse (10/1000µs) | 25.9A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB |
| Base Product Number | SMBJ14 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
