Product Catalog

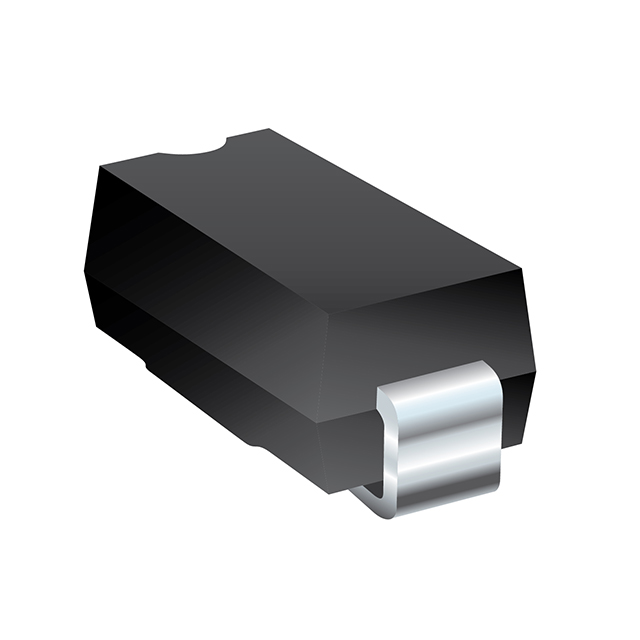

SMBJ14CA-13

SMBJ14CA-13

SMBJ14CA-13

lmages are for reference only.
  • Part Number

    SMBJ14CA-13

  • Manufacturer

    Diodes Incorporated
  • Description

    TVS DIODE 14VWM 23.2VC SMB

  • Datasheet

    DatasheetDatasheet
  • Package

    DO-214AA, SMB

  • In Stock

    48,239 piece(s)

  • Unit Price

    Please Contact Us

  • Lead Time

    Can Ship Immediately

Request for Quotation

  • Payment Methods

  • Delivery Services

23.2V Clamp 25.8A Ipp Tvs Diode Surface Mount SMB

Quick Inquiry

SMBJ14CA-13

Get the Price Now!

Specifications

Category Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes
Manufacturer Diodes Incorporated
Series SMBJ
Packaging Tape & Reel (TR)-->Cut Tape (CT)
RoHS Status RoHS non-compliant
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 14V
Voltage - Breakdown (Min) 15.6V
Voltage - Clamping (Max) @ Ipp 23.2V
Current - Peak Pulse (10/1000µs) 25.8A
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency -
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package SMB
Base Product Number SMBJ14
Unidirectional Channels -
Grade -
Qualification -

Parts with Similar Specifications

Product Attribute SMBJ14CA-13-F SMBJ14CA SMBJ14CA SMBJ14CA
Part Number SMBJ14CA-13-F SMBJ14CA SMBJ14CA SMBJ14CA
Manufacturer Diodes Incorporated SMC Diode Solutions Semtech Corporation Littelfuse Inc.
RoHS Status ROHS3 Compliant ROHS3 Compliant ROHS3 Compliant
Description TVS DIODE 14VWM 23.2VC SMB TVS DIODE 14VWM 23.2VC SMB 1-LINE 14V 25.8A TVS DO-214AA(SM TVS DIODE 14VWM 23.2VC DO214AA
Series Diodes Incorporated SMC Diode Solutions Semtech Corporation Littelfuse Inc.
Packaging Tape & Reel (TR)-->Cut Tape (CT) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)-->Cut Tape (CT)
