SMBJ20

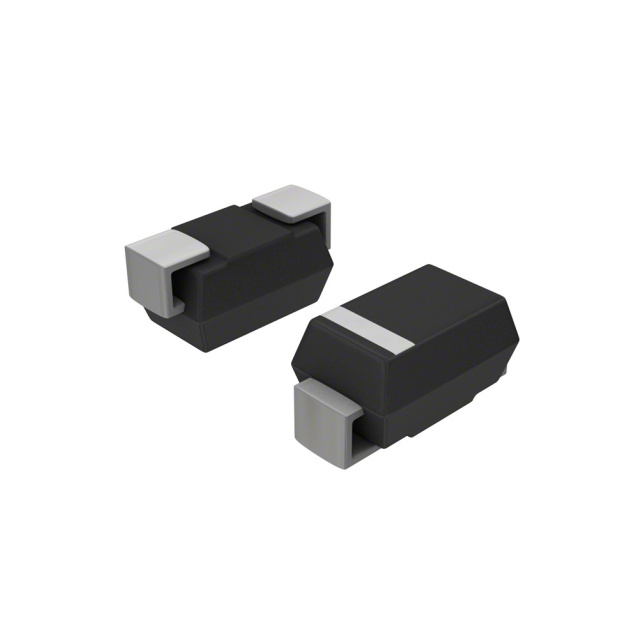

lmages are for reference only.SMBJ20
600W, 24.7V, 10%, UNIDIRECTIONAL
DatasheetDO-214AA, SMB
34,792 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
35.8V Clamp 17.6A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
SMBJ20
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | SMBJ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 20V |
| Voltage - Breakdown (Min) | 22.2V |
| Voltage - Clamping (Max) @ Ipp | 35.8V |
| Current - Peak Pulse (10/1000µs) | 17.6A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMB) |
| Base Product Number | SMBJ20 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |
| Part Number | SMBJ20 | SMBJ20-E3/52 | SMBJ20-E3/5B | SMBJ200 |
| Manufacturer | Littelfuse Inc. | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 20VWM 34.02VC DO214AA | TVS DIODE 20VWM 35.8VC DO214AA | TVS DIODE 20VWM 35.8VC DO214AA | TVS DIODE 200VWM 340.2VC DO214AA |
| Series | Littelfuse Inc. | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Littelfuse Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
