Product CatalogPart Number
SMBJ36CA-13
Manufacturer
Diodes IncorporatedDescription
TVS DIODE 36VWM 58.1VC SMB
Datasheet
DatasheetPackage
DO-214AA, SMB
In Stock
45,127 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

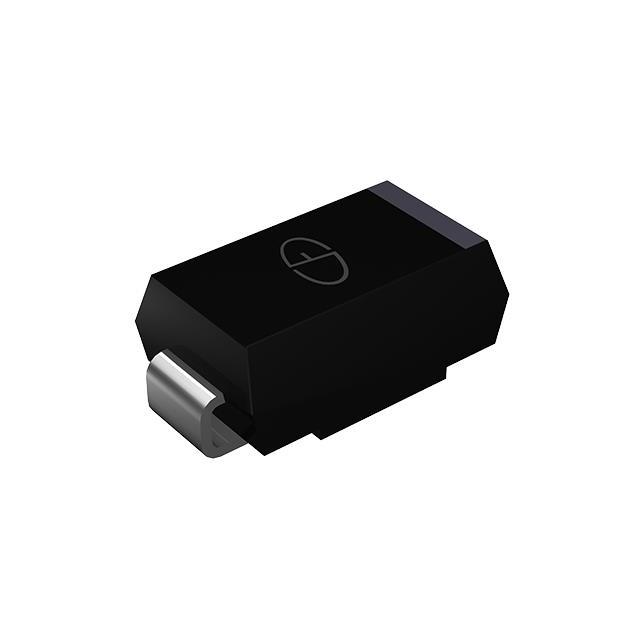

SMBJ36CA-13
SMBJ36CA-13
lmages are for reference only.Payment Methods
Delivery Services
58.1V Clamp 10.3A Ipp Tvs Diode Surface Mount SMB
Quick Inquiry
SMBJ36CA-13
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diodes Incorporated |
| Series | SMBJ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS non-compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 36V |
| Voltage - Breakdown (Min) | 40V |
| Voltage - Clamping (Max) @ Ipp | 58.1V |
| Current - Peak Pulse (10/1000µs) | 10.3A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB |
| Base Product Number | SMBJ36 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
|
| Part Number | SMBJ36CA-13-F | SMBJ36CA | SMBJ36CA | SMBJ36CA |
| Manufacturer | Diodes Incorporated | Bourns Inc. | Semtech Corporation | ANBON SEMICONDUCTOR (INT'L) LIMITED |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | TVS DIODE 36VWM 58.1VC SMB | TVS DIODE 36VWM 58.1VC SMB | TVS DIODE 36VWM 58.1VC SMB | 600W TRANSIENT VOLTAGE SUPPRESSO |
| Series | Diodes Incorporated | Bourns Inc. | Semtech Corporation | ANBON SEMICONDUCTOR (INT'L) LIMITED |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
