SMBJ58-E3/5B

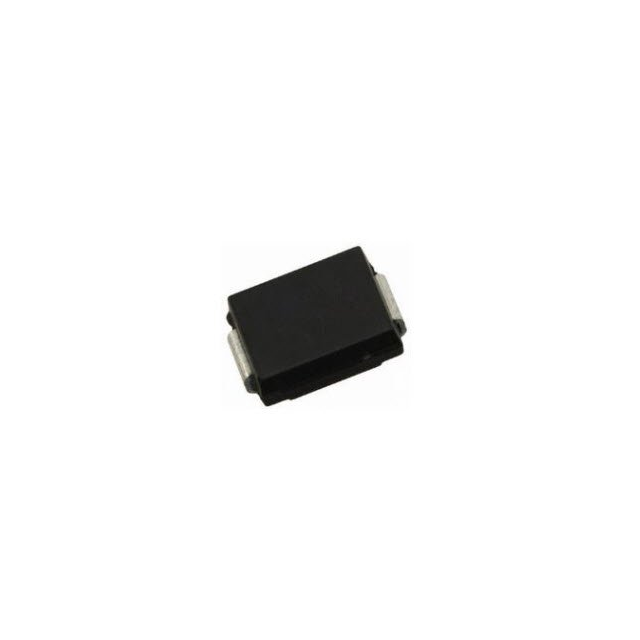

lmages are for reference only.SMBJ58-E3/5B
TVS DIODE 58VWM 103VC DO214AA
DatasheetDO-214AA, SMB
76,575 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
103V Clamp 5.8A Ipp Tvs Diode Surface Mount DO-214AA (SMBJ)
SMBJ58-E3/5B
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | TransZorb® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 58V |
| Voltage - Breakdown (Min) | 64.4V |
| Voltage - Clamping (Max) @ Ipp | 103V |
| Current - Peak Pulse (10/1000µs) | 5.8A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMBJ) |
| Base Product Number | SMBJ58 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | SMBJ58-E3/52 | SMBJ58 | SMBJ58 | SMBJ58A |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Taiwan Semiconductor Corporation | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 58VWM 103VC DO214AA | 600W, 71.6V, 10%, UNIDIRECTIONAL | TVS DIODE 58VWM 98.28VC DO214AA | TVS DIODE 58VWM 93.6VC DO214AA |
| Series | Vishay General Semiconductor - Diodes Division | Taiwan Semiconductor Corporation | Littelfuse Inc. | Littelfuse Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
