SMBJE180AH

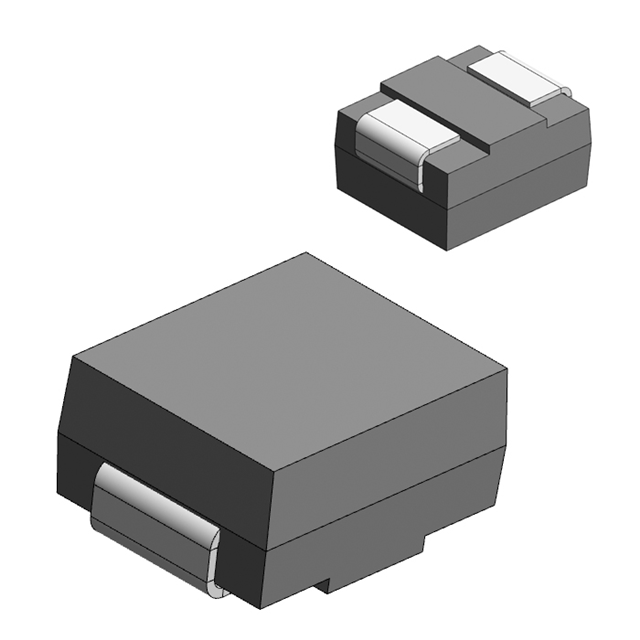

lmages are for reference only.SMBJE180AH
TVS DIODE 180VWM 292VC UNI
DatasheetDO-214AA, SMB
80,185 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
292V Clamp 2.1A Ipp Tvs Diode Surface Mount DO-214AA (SMBJ)
SMBJE180AH
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Eaton - Electronics Division |
| Series | SMBJExxH |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 180V |
| Voltage - Breakdown (Min) | 201V |
| Voltage - Clamping (Max) @ Ipp | 292V |
| Current - Peak Pulse (10/1000µs) | 2.1A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | Telecom |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMBJ) |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |
| Part Number | SMBJE180A | SMBJE180CA | SMBJE180CAH | SMBJE18A |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | RoHS Compliant | RoHS Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | TVS DIODE 180VWM 292VC SMB | TVS DIODE 180VWM 292VC SMB | TVS DIODE 180VWM 292VC BI | TVS DIODE 18VWM 29.2VC SMB |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
