SMCJ130AH

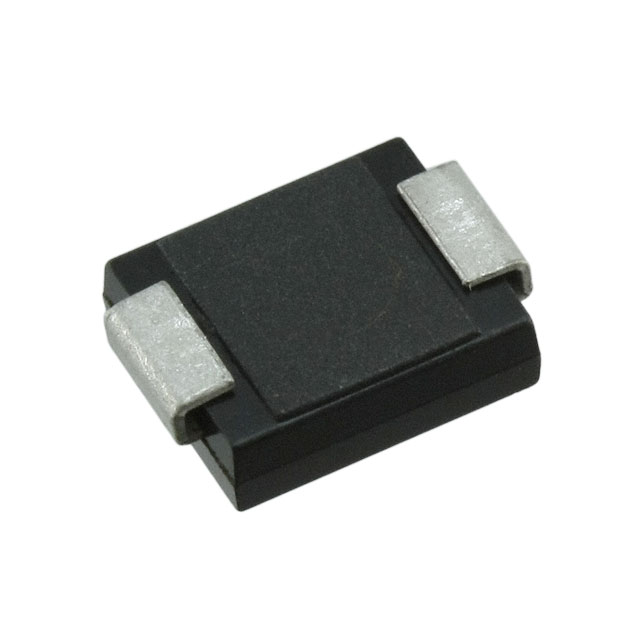

lmages are for reference only.SMCJ130AH
TVS DIODE 130VWM 209VC DO214AB
DatasheetDO-214AB, SMC
69,132 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
209V Clamp 7.5A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
SMCJ130AH
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | SMCJ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 130V |
| Voltage - Breakdown (Min) | 144V |
| Voltage - Clamping (Max) @ Ipp | 209V |
| Current - Peak Pulse (10/1000µs) | 7.5A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | Telecom |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMC) |
| Base Product Number | SMCJ130 |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
|
|
|
| Part Number | SMCJ130A | SMCJ130A | SMCJ130A | SMCJ130A |
| Manufacturer | SMC Diode Solutions | Taiwan Semiconductor Corporation | Bourns Inc. | Meritek |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 130VWM 209VC SMC | TVS DIODE 130VWM 209VC SMC | TVS DIODE 130VWM 209VC SMC | TVS DIODE 130VWM 209VC |
| Series | SMC Diode Solutions | Taiwan Semiconductor Corporation | Bourns Inc. | Meritek |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Strip |
