SMCJ14C
lmages are for reference only.SMCJ14C
1500W, 17.4V, 10%, BIDIRECTIONAL
DatasheetDO-214AB, SMC
30,531 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
25.8V Clamp 61A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
SMCJ14C
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | SMCJ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 14V |
| Voltage - Breakdown (Min) | 15.6V |
| Voltage - Clamping (Max) @ Ipp | 25.8V |
| Current - Peak Pulse (10/1000µs) | 61A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMC) |
| Base Product Number | SMCJ14 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |

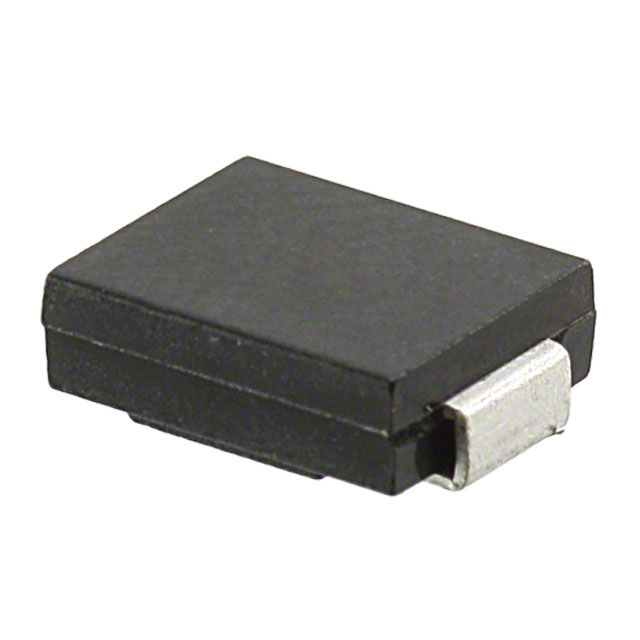

| Part Number | SMCJ14 | SMCJ14 | SMCJ140A | SMCJ140AQ-TP |
| Manufacturer | Littelfuse Inc. | Taiwan Semiconductor Corporation | KYOCERA AVX | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 14VWM 24.36VC DO214AB | 1500W, 17.4V, 10%, UNIDIRECTIONA | TVS DIODE 140VWM 227VC DO214AB | TVS DIODES |
| Series | Littelfuse Inc. | Taiwan Semiconductor Corporation | KYOCERA AVX | Micro Commercial Co |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
