SMCJ5633AE3/TR13

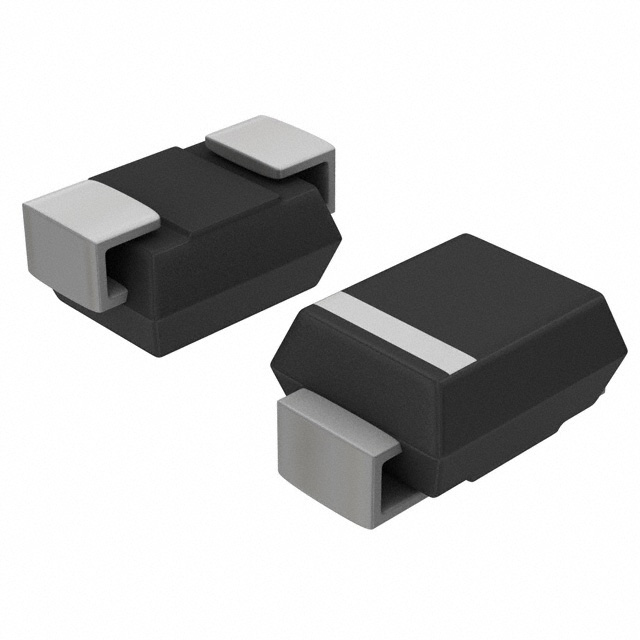

lmages are for reference only.SMCJ5633AE3/TR13
TVS DIODE 8.55VWM 14.5VC DO214AB
DatasheetDO-214AB, SMC
47,833 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
14.5V Clamp Ipp Tvs Diode Surface Mount DO-214AB (SMCJ)
SMCJ5633AE3/TR13
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Microsemi Corporation |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 8.55V |
| Voltage - Breakdown (Min) | 9.5V |
| Voltage - Clamping (Max) @ Ipp | 14.5V |
| Current - Peak Pulse (10/1000µs) | - |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMCJ) |
| Base Product Number | SMCJ5633 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SMCJ5630AE3/TR13 | SMCJ5632E3/TR13 | SMCJ5633A/TR13 | SMCJ5633E3/TR13 |
| Manufacturer | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS non-compliant | RoHS Compliant |
| Description | TVS DIODE 6.4VWM 11.3VC DO214AB | TVS DIODE 7.37VWM 13.8VC DO214AB | TVS DIODE 8.55VWM 14.5VC DO214AB | TVS DIODE 8.1VWM 15VC DO214AB |
| Series | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation | Microsemi Corporation |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
