Product CatalogPart Number
SMDJ12CAJ
Manufacturer
WeEn SemiconductorsDescription
SMDJ12CA/SMC/REEL 13" Q1/T1 *ST
Datasheet
DatasheetPackage
DO-214AB, SMC
In Stock
77,942 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SMDJ12CAJ
SMDJ12CAJ

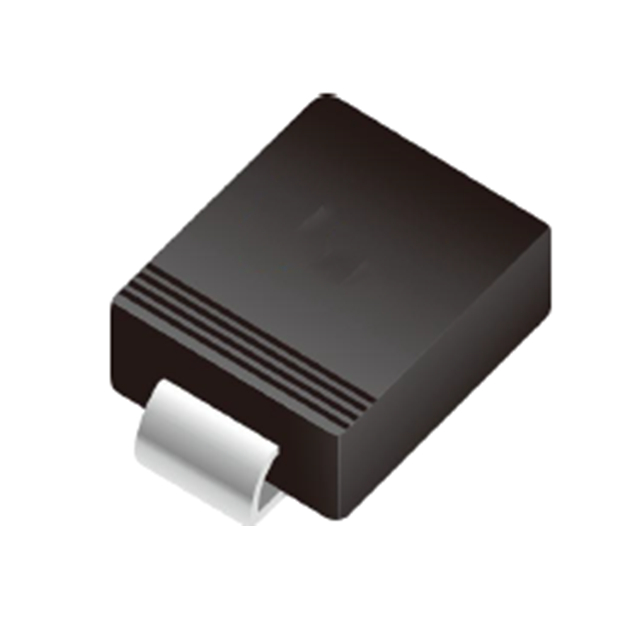

lmages are for reference only.Payment Methods
Delivery Services
19.9V Clamp 150.8A Ipp Tvs Diode Surface Mount SMC
Quick Inquiry
SMDJ12CAJ
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | WeEn Semiconductors |
| Series | SMDJ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 12V |
| Voltage - Breakdown (Min) | 13.48V |
| Voltage - Clamping (Max) @ Ipp | 19.9V |
| Current - Peak Pulse (10/1000µs) | 150.8A |
| Power - Peak Pulse | 3000W (3kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | SMC |
| Base Product Number | SMDJ12 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
|
|
| Part Number | SMDJ12CA | SMDJ12CA | SMDJ12CA | SMDJ12CA |
| Manufacturer | Littelfuse Inc. | Taiwan Semiconductor Corporation | NextGen Components | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | TVS DIODE 12VWM 19.9VC DO214AB | TVS DIODE 12VWM 19.9VC DO214AB | TVS Diode 3000W 12V BI SMD | 1CH 12V BIDIRECTIONAL 3000W SMD |
| Series | Littelfuse Inc. | Taiwan Semiconductor Corporation | NextGen Components | Alpha & Omega Semiconductor Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
