SMF-2432SIC-TR

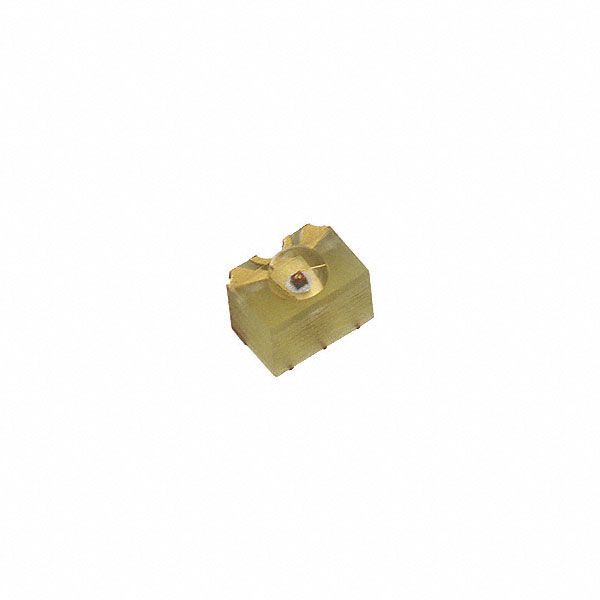

lmages are for reference only.SMF-2432SIC-TR
LED RED CLEAR SMD R/A
Datasheet3-SMD, No Lead
54,827 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Red LED Indication - Discrete 2V 3-SMD, No Lead
SMF-2432SIC-TR
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Lumex Opto/Components Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Red |
| Configuration | Standard |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 60mcd |
| Lens Style | Round with Domed Top |
| Lens Size | 1.60mm Dia |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Viewing Angle | 110° |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | - |
| Wavelength - Peak | 636nm |
| Features | - |
| Package / Case | 3-SMD, No Lead |
| Supplier Device Package | SMD |
| Size / Dimension | 3.20mm L x 3.10mm W |
| Height (Max) | 2.40mm |
| Base Product Number | SMF-2432 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SMF-2432GC-TR | SMF-2432SYC-TR | SMF-2432UPGC-TR | SMF-2432USBC-TR |
| Manufacturer | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED GREEN CLEAR SMD R/A | LED YELLOW CLEAR SMD R/A | LED GREEN CLEAR SMD R/A | LED BLUE CLEAR SMD R/A |
| Series | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
