SMF252012A-1R0MHF

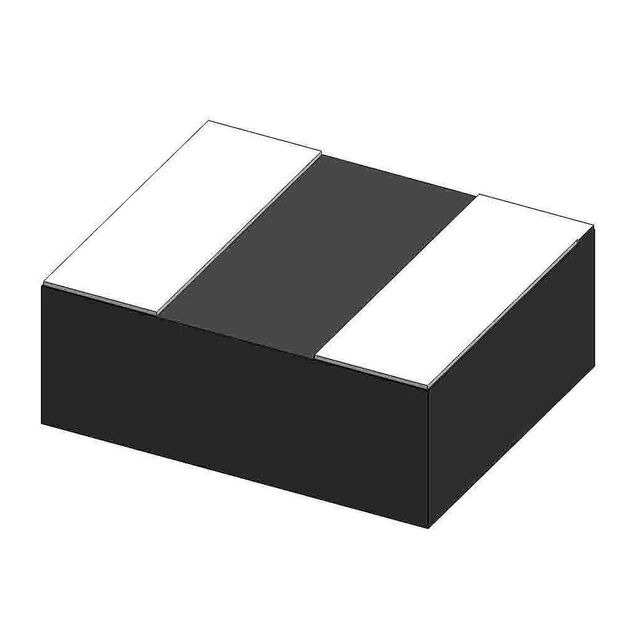

lmages are for reference only.SMF252012A-1R0MHF
Molded Inductor 1uH 20mOhm 5.8A
Datasheet1008 (2520 Metric)
71,295 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 µH Unshielded Molded Inductor 5.5 A 23mOhm Max 1008 (2520 Metric)
SMF252012A-1R0MHF
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | ITG Electronics, Inc. |
| Series | SMF252012A |
| Packaging | Strip |
| RoHS Status | RoHS Compliant |
| Type | Molded |
| Material - Core | Metal |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5.5 A |
| Current - Saturation (Isat) | 5.8A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 23mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SMF252012A-R33MHF | SMF252010A-1R0MHF | SMF252010A-2R2MHF | SMF252010A-4R7MHF |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | Molded Inductor.33uH7.8mOhm9.5A | Molded Inductor 1uH 22.5mOhm 5A | Molded Inductor2.2uH 60mOhm 3.2A | Molded Inductor4.7uH145mOhm2.1A |
| Series | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| Packaging | Strip | Strip | Strip | Strip |
