Product CatalogPart Number
SMF26A-HE3_A18
Manufacturer
VishayDescription
ESD PROTECTION DIODE SMF DO219AB
Datasheet
DatasheetPackage
DO-219AB
In Stock
23,249 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SMF26A-HE3_A18
SMF26A-HE3_A18

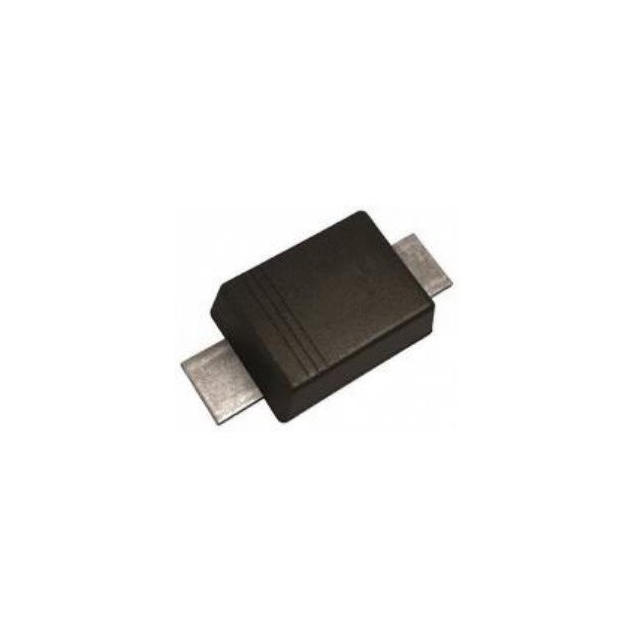

lmages are for reference only.Payment Methods
Delivery Services
42.1V Clamp 4.8A Ipp Tvs Diode Surface Mount DO-219AB (SMF)
Quick Inquiry
SMF26A-HE3_A18
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay |
| Series | eSMP® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 26V |
| Voltage - Breakdown (Min) | 28.9V |
| Voltage - Clamping (Max) @ Ipp | 42.1V |
| Current - Peak Pulse (10/1000µs) | 4.8A |
| Power - Peak Pulse | 200W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | 230pF @ 1MHz |
| Operating Temperature | -65°C ~ 175°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | DO-219AB |
| Supplier Device Package | DO-219AB (SMF) |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | SMF26A-HE3-08 | SMF26A-HE3-18 | SMF26A-HE3_A08 | SMF26A-HF |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay | Comchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | |
| Description | TVS DIODE 26VWM 42.1VC DO219AB | TVS DIODE 26VWM 42.1VC SMF | ESD PROTECTION DIODE SMF DO219AB | DIODE TVS 200W 26V UNI-DIRECTION |
| Series | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay | Comchip Technology |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
