SMF48A RVG

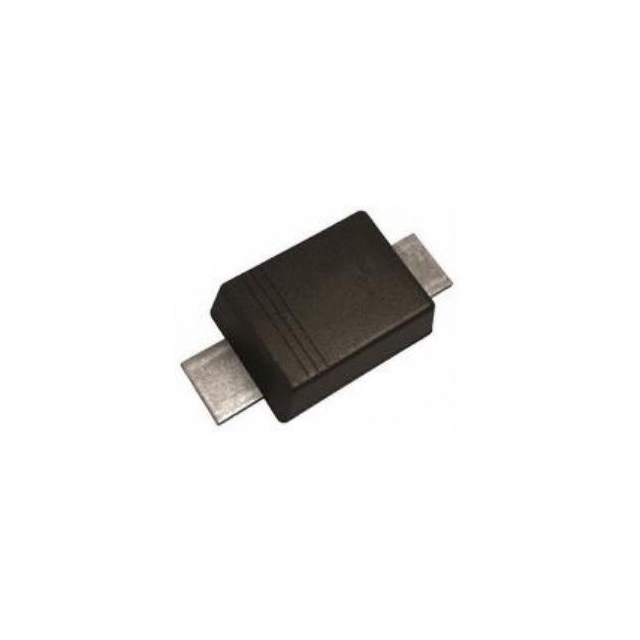

lmages are for reference only.SMF48A RVG
TVS DIODE 48VWM 77.4VC SOD123W
DatasheetSOD-123W
47,595 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
77.4V Clamp 2.6A Ipp Tvs Diode Surface Mount SOD-123W
SMF48A RVG
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 48V |
| Voltage - Breakdown (Min) | 53.3V |
| Voltage - Clamping (Max) @ Ipp | 77.4V |
| Current - Peak Pulse (10/1000µs) | 2.6A |
| Power - Peak Pulse | 200W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123W |
| Supplier Device Package | SOD-123W |
| Base Product Number | SMF48 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
|
| Part Number | SMF40A | SMF40A | SMF40A | SMF40A |
| Manufacturer | Diotec Semiconductor | Taiwan Semiconductor Corporation | Littelfuse Inc. | Meritek |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 40VWM 64.5VC SOD-123FL | TVS DIODE 40VWM 64.5VC SOD123W | TVS SOD123FL 40V 200W UNIDIR | TVS DIODE 40VWM 64.5VC |
| Series | Diotec Semiconductor | Taiwan Semiconductor Corporation | Littelfuse Inc. | Meritek |
| Packaging | Bulk | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Strip |
