Product CatalogPart Number
SMF4L12A-58A
Manufacturer
Bourns Inc.Description
PRICE REFERENCE MATERIAL
Datasheet
DatasheetPackage
SOD-123F
In Stock
21,598 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SMF4L12A-58A
SMF4L12A-58A

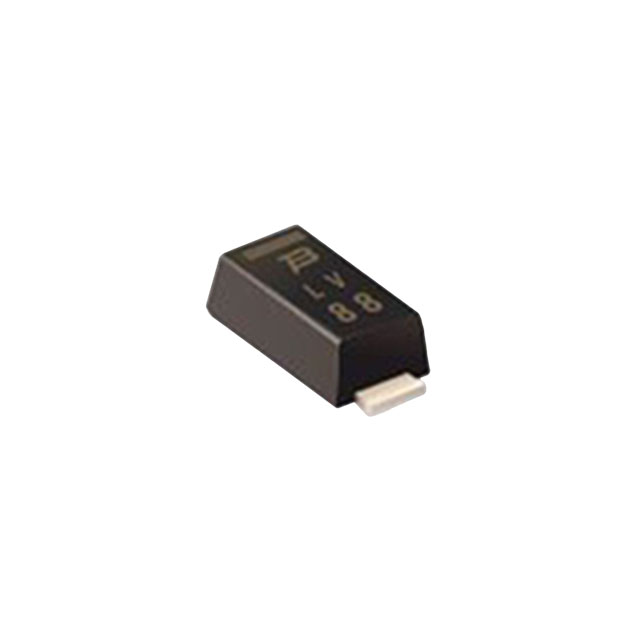

lmages are for reference only.Payment Methods
Delivery Services
Clamp 20.1A Ipp Tvs Diode Surface Mount SOD-123FL
Quick Inquiry
SMF4L12A-58A
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Bourns Inc. |
| Series | SMF4L |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 12V |
| Voltage - Breakdown (Min) | 14V (Typ) |
| Voltage - Clamping (Max) @ Ipp | - |
| Current - Peak Pulse (10/1000µs) | 20.1A |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123F |
| Supplier Device Package | SOD-123FL |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | SMF4L12A-7 | SMF4L12A-Q | SMF4L100A | SMF4L100A-7 |
| Manufacturer | Diodes Incorporated | Bourns Inc. | Littelfuse Inc. | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TRANSIENT VOLTAGE SUPPRESSOR PP | DIODE TVS 400W UNI SMF | TVS DIODE 100VWM 162VC SOD123FL | TRANSIENT VOLTAGE SUPPRESSOR PP |
| Series | Diodes Incorporated | Bourns Inc. | Littelfuse Inc. | Diodes Incorporated |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
