SMF6V5A-M3-08

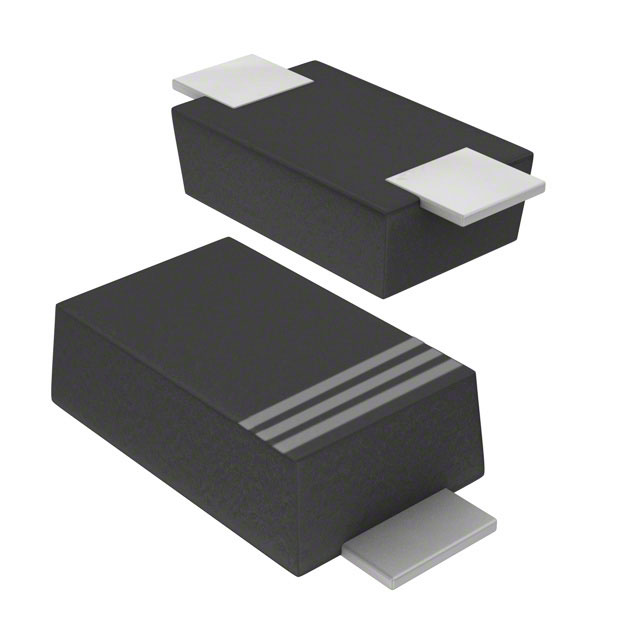

lmages are for reference only.SMF6V5A-M3-08
TVS DIODE 6.5VWM 11.2VC SMF
DatasheetDO-219AB
55,283 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
11.2V Clamp 17.9A Ipp Tvs Diode Surface Mount DO-219AB (SMF)
SMF6V5A-M3-08
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | eSMP® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 6.5V |
| Voltage - Breakdown (Min) | 7.22V |
| Voltage - Clamping (Max) @ Ipp | 11.2V |
| Current - Peak Pulse (10/1000µs) | 17.9A |
| Power - Peak Pulse | 200W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 938pF @ 1MHz |
| Operating Temperature | -65°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-219AB |
| Supplier Device Package | DO-219AB (SMF) |
| Base Product Number | SMF6V5 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SMF6V5A-M3-18 | SMF6V5A-E3-08 | SMF6V5A-E3-18 | SMF6V5A-HE3-08 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 6.5VWM 11.2VC SMF | TVS DIODE 6.5VWM 11.2VC SMF | TVS DIODE 6.5VWM 11.2VC SMF | TVS DIODE 6.5VWM 11.2VC DO219AB |
| Series | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
