SMF7.0CA

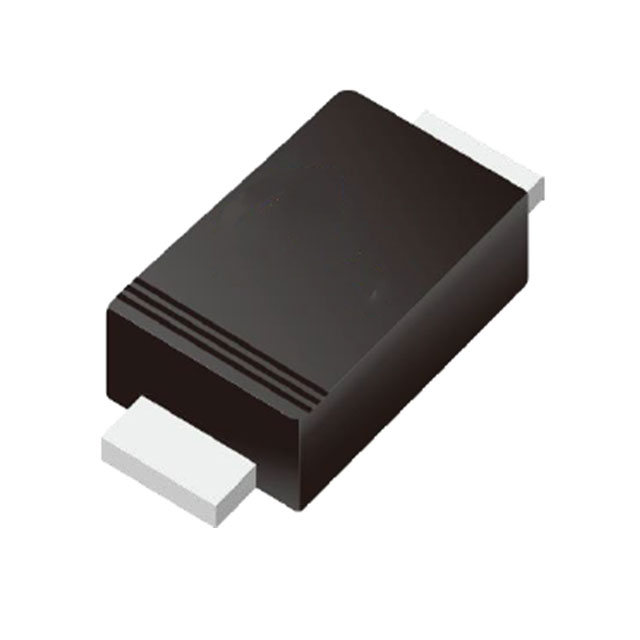

lmages are for reference only.SMF7.0CA
TVS DIODE 200W 7.78V-8.6V SOD-1
DatasheetSOD-123F
45,994 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
12V Clamp 16.7A Ipp Tvs Diode Surface Mount SOD-123
SMF7.0CA
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | ANBON SEMICONDUCTOR (INT'L) LIMITED |
| Series | SMF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 7V |
| Voltage - Breakdown (Min) | 7.78V |
| Voltage - Clamping (Max) @ Ipp | 12V |
| Current - Peak Pulse (10/1000µs) | 16.7A |
| Power - Peak Pulse | 200W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123F |
| Supplier Device Package | SOD-123 |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
|
|
| Part Number | SMF7.0CA | SMF7.0CA | SMF7.0CA | SMF7.0CA |
| Manufacturer | Diotec Semiconductor | Littelfuse Inc. | Meritek | MDD |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 7VWM 12VC SOD-123FL | TVS SOD123FL 7V 200W BIDIR | TVS DIODE 7VWM 12VC | TVS DIODE 7VWM 12VC SMF |
| Series | Diotec Semiconductor | Littelfuse Inc. | Meritek | MDD |
| Packaging | Bulk | Tape & Reel (TR) | Strip | Tape & Reel (TR) |
