SMH10VN153M22X30T2
lmages are for reference only.Payment Methods
Delivery Services
15000 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 55mOhm @ 120Hz 2000 Hrs @ 85°C
SMH10VN153M22X30T2
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chemi-Con |
| Series | SMH |
| Packaging | Tray |
| RoHS Status | RoHS non-compliant |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 55mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.76 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.9808 A @ 100 kHz |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Base Product Number | - |
| Impedance | - |
| Product Attribute | |
|
 |
|

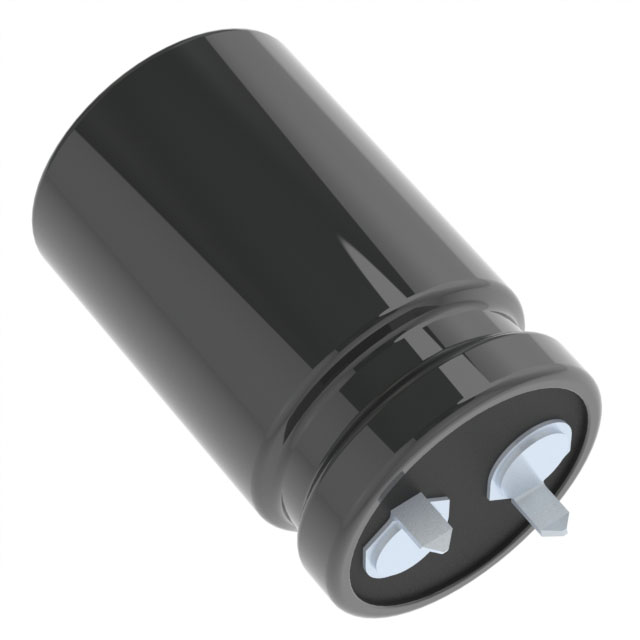

| Part Number | SMH10VN123M22X25T2 | SMH10VN153M25X25T2 | SMH10VN183M22X35T2 | SMH100VN152M22X35T2 |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | CAP ALUM 12000UF 20% 10V SNAP TH | CAP ALUM 15000UF 20% 10V SNAP TH | CAP ALUM 18000UF 20% 10V SNAP TH | CAP ALUM 1500UF 20% 100V SNAP TH |
| Series | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| Packaging | Tray | Tray | Tray | Tray |
