SMH35VN123M25X45T2
lmages are for reference only.Payment Methods
Delivery Services
12000 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 35mOhm @ 120Hz 2000 Hrs @ 85°C
SMH35VN123M25X45T2
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chemi-Con |
| Series | SMH |
| Packaging | Tray |
| RoHS Status | RoHS non-compliant |
| Capacitance | 12000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 35mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.98 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.2984 A @ 100 kHz |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.000" Dia (25.40mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Base Product Number | - |
| Impedance | - |
| Product Attribute | |
|
 |
|

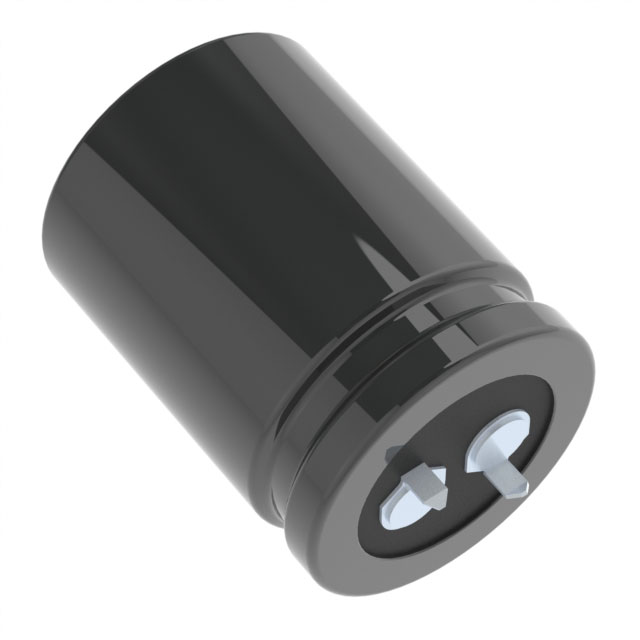

| Part Number | SMH35VN123M30X35T2 | SMH35VN153M25X50T2 | SMH35VN153M30X40T2 | SMH35VN153M35X35T2 |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | CAP ALUM 12000UF 20% 35V SNAP TH | CAP ALUM 15000UF 20% 35V SNAP TH | CAP ALUM 15000UF 20% 35V SNAP TH | CAP ALUM 15000UF 20% 35V SNAP TH |
| Series | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| Packaging | Tray | Tray | Tray | Tray |
