SMHC2511-R82MHF

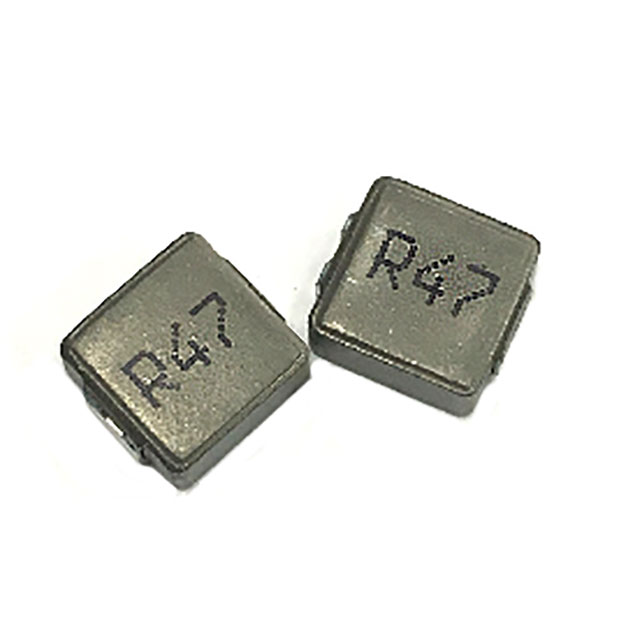

lmages are for reference only.SMHC2511-R82MHF
FIXED IND 820NH 13A 8 MOHM SMD
DatasheetNonstandard
80,636 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
820 nH Shielded Inductor 13 A 8mOhm Max Nonstandard
SMHC2511-R82MHF
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | ITG Electronics, Inc. |
| Series | SMHC2511 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | Metal |
| Inductance | 820 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 13 A |
| Current - Saturation (Isat) | 24A |
| Shielding | Shielded |
| DC Resistance (DCR) | 8mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.280" L x 0.260" W (7.10mm x 6.60mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SMHC2511-R82MHF-CT | SMHC2511-1R0MHF-CT | SMHC2511-1R5MHF-CT | SMHC2511-2R2MHF-CT |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | 0.82uH, 20%, 6.7mOhm, 24Amp Max | 1uH, 20%, 9mOhm, 22Amp Max. SMD | 1.5uH, 20%,14mOhm,18Amp Max. SMD | 2.2uH, 20%,18mOhm,14Amp Max. SMD |
| Series | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| Packaging | Strip | Strip | Strip | Strip |
