Product CatalogPart Number
SMI-1324-TW-5V-2-R
Manufacturer
PUI Audio, Inc.Description
BUZZER MAGNETIC 5V 12.8X12.8 SMD
Datasheet
DatasheetPackage
-
In Stock
63,220 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SMI-1324-TW-5V-2-R
SMI-1324-TW-5V-2-R
lmages are for reference only.Payment Methods
Delivery Services
Buzzers Indicator, Internally Driven Electromechanical/Magnetic 5 V 30mA 2.4kHz 88dB @ 5V, 10cm Surface Mount Solder Pads
Quick Inquiry
SMI-1324-TW-5V-2-R
Specifications
| Category | Audio Products - Alarms-Buzzers-and Sirens - |
| Manufacturer | PUI Audio, Inc. |
| Series | SMI |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 5 V |
| Voltage Range | 4 ~ 7V |
| Frequency | 2.4kHz |
| Technology | Electromechanical/Magnetic |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 88dB @ 5V, 10cm |
| Current - Supply | 30mA |
| Port Location | Top |
| Operating Temperature | -40°C ~ 85°C |
| Approval Agency | - |
| Ratings | Washable |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.504" L x 0.504" W (12.80mm x 12.80mm) |
| Height - Seated (Max) | 0.299" (7.60mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | SMI-1324-TW-5V-2-R-T/R | SMI-1324-TW-5V-3-R | SMI-1324-TW-5V-4-R-T/R | SMI-1324-TW-5V-5-R-T/R |
| Manufacturer | PUI Audio, Inc. | PUI Audio, Inc. | PUI Audio, Inc. | PUI Audio, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | BUZZER MAGNETIC 5V 12.8X12.8 SMD | BUZZER MAGNETIC 5V 12.8X12.8 SMD | BUZZER MAGNETIC 5V 12.8X12.8 SMD | BUZZER MAGNETIC 5V 12.8X12.8 SMD |
| Series | SMI | SMI | SMI | SMI |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
Customers Also Interested in
Recommended Products
SMI-1027-T-5V-R
PUI Audio, Inc.
SMI-1027-TW-12V-R
PUI Audio, Inc.
SMI-1027-TW-3V-R
PUI Audio, Inc.

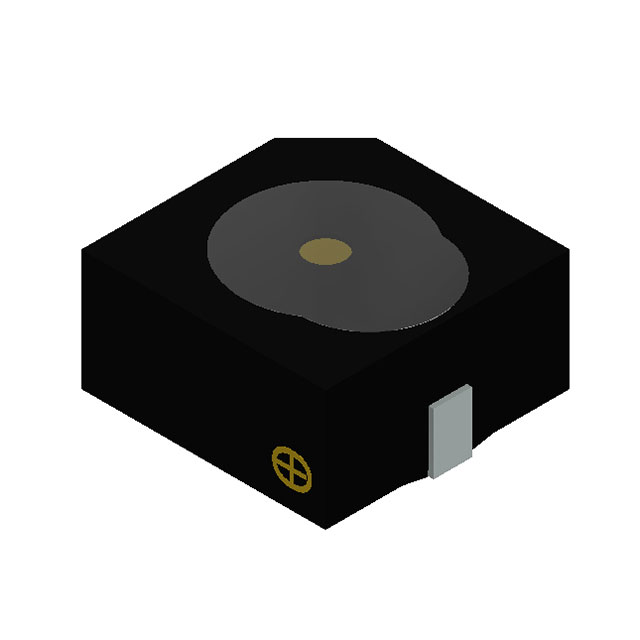

SMI-1027-TW-5V-R
PUI Audio, Inc.

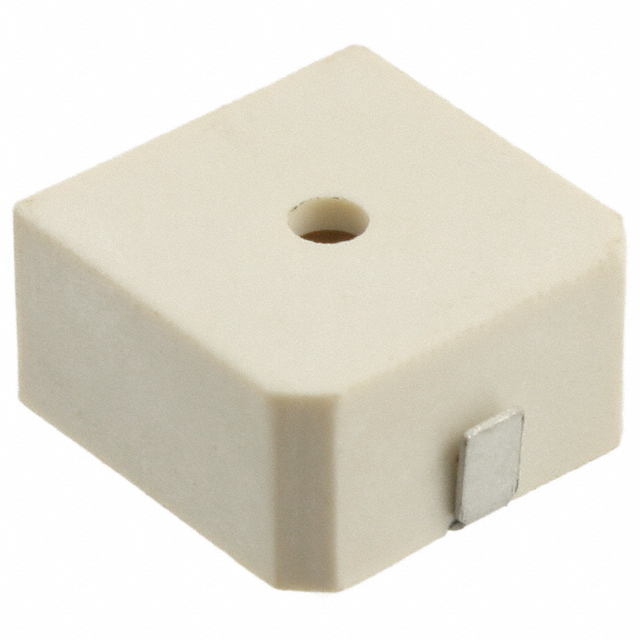

SMI-1324-TW-12V-R
PUI Audio, Inc.
SMI-1324-TW-12V-R-T/R
PUI Audio, Inc.
SMI-1324-TW-3V-R
PUI Audio, Inc.
SMI-1324-TW-3V-R-T/R
PUI Audio, Inc.
SMI-1324-TW-5V-2-R-T/R
PUI Audio, Inc.
SMI-1324-TW-5V-3-R
PUI Audio, Inc.
SMI-1324-TW-5V-4-R-T/R
PUI Audio, Inc.
SMI-1324-TW-5V-5-R-T/R
PUI Audio, Inc.

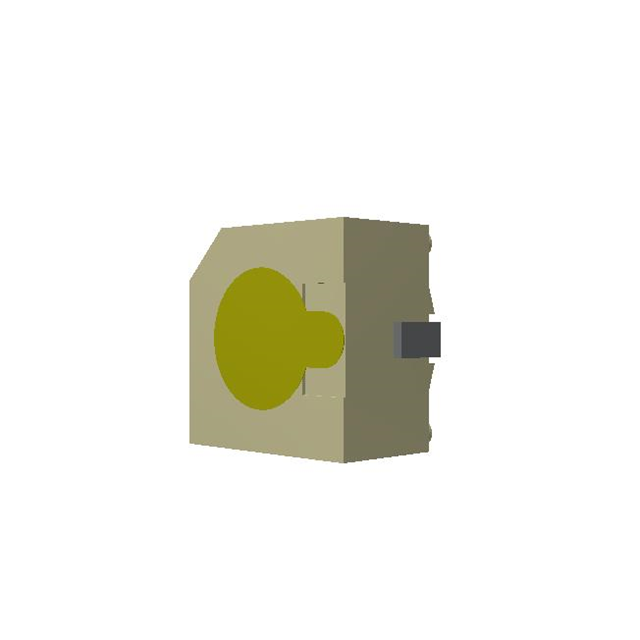

SMI-1324-TW-5V-HT-R
