Product CatalogPart Number
SML-D12V8WT86
Manufacturer
Rohm SemiconductorDescription
LED RED DIFFUSED 1608 SMD
Datasheet
DatasheetPackage
0603 (1608 Metric)
In Stock
76,001 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SML-D12V8WT86
SML-D12V8WT86

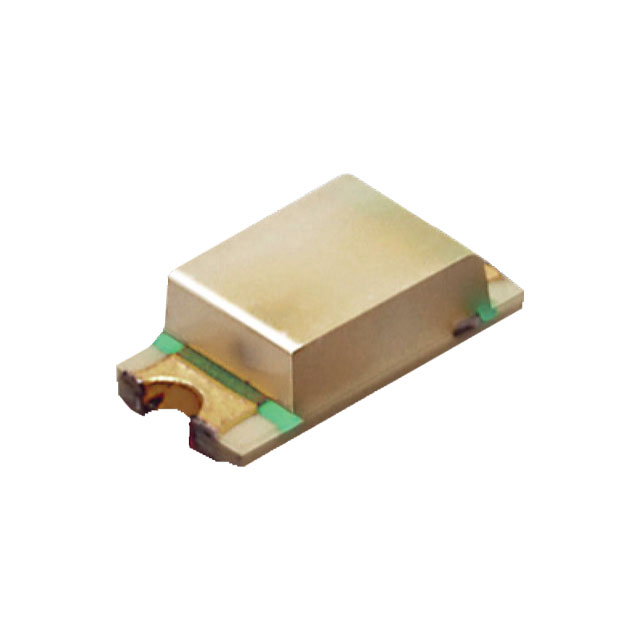

lmages are for reference only.Payment Methods
Delivery Services
Red 630nm LED Indication - Discrete 2.2V 0603 (1608 Metric)
Quick Inquiry
SML-D12V8WT86
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Rohm Semiconductor |
| Series | EXCELED™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Red |
| Configuration | Standard |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 40mcd |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.20mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Current - Test | 20mA |
| Viewing Angle | - |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 630nm |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 1608 (0603) |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Height (Max) | 0.65mm |
| Base Product Number | SML-D12 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | SML-D12V8WT86C | SML-D12D1WT86 | SML-D12D8WT86 | SML-D12D8WT86C |
| Manufacturer | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RED 1608 SMD | LED ORANGE DIFFUSED 1608 SMD | LED ORANGE DIFFUSED 1608 SMD | LED ORANGE CLEAR 1608 SMD |
| Series | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
