SML-H1505UPGD-TR
lmages are for reference only.SML-H1505UPGD-TR
LED GREEN DIFF SMD DOME LED SMD
Datasheet2-SMD, 1505
68,725 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Green LED Indication - Discrete 3.3V 2-SMD, 1505
SML-H1505UPGD-TR
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Lumex Opto/Components Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | Green |
| Configuration | Independent |
| Lens Color | Green |
| Lens Transparency | Diffused |
| Millicandela Rating | 2200mcd |
| Lens Style | Round with Domed Top |
| Lens Size | 4.90mm Dia |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Current - Test | 20mA |
| Viewing Angle | 60° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | 520nm |
| Features | - |
| Package / Case | 2-SMD, 1505 |
| Supplier Device Package | Surface Mounted Dome LED |
| Size / Dimension | 6.51mm L x 6.51mm W |
| Height (Max) | 11.00mm |
| Base Product Number | SML-H1505 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

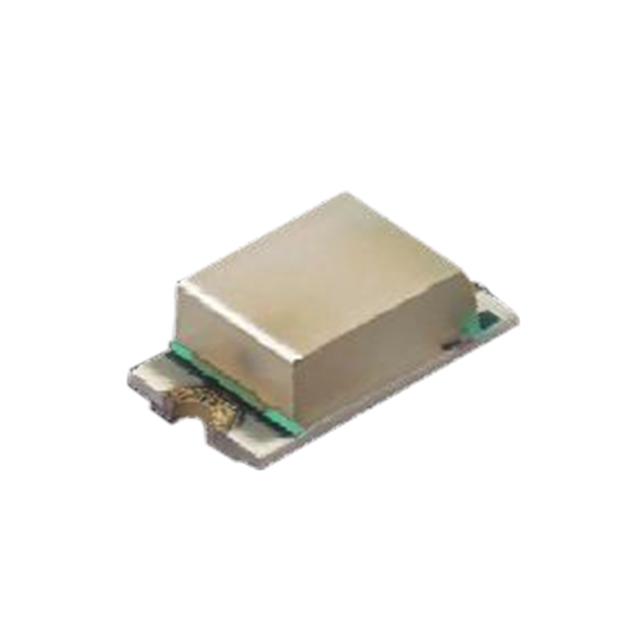

| Part Number | SML-H1505UPGC-TR | SML-H1505USBC-TR | SML-H1505UWC-TR | SML-H12D8TT86 |
| Manufacturer | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Rohm Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED GREEN CLEAR SMD DOME LED SMD | LED BLUE CLEAR SMD DOME LED SMD | LED WHITE CLEAR SMD DOME LED SMD | LED ORANGE CLEAR 0805 SMD |
| Series | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Rohm Semiconductor |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
