SML-LX0303SIUPGUSB
lmages are for reference only.SML-LX0303SIUPGUSB
LED RGB CLEAR 4SMD
Datasheet4-SMD, No Lead
58,126 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Red, Green, Blue (RGB) LED Indication - Discrete 2V Red, 2.9V Green, 2.9V Blue 4-SMD, No Lead
SML-LX0303SIUPGUSB
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Lumex Opto/Components Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | Clear |
| Lens Transparency | Clear |
| Millicandela Rating | - |
| Lens Style | Square with Flat Top |
| Lens Size | 0.80mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 2.9V Green, 2.9V Blue |
| Current - Test | 3mA Red, 5mA Green, 5mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | 625nm Red, 525nm Green, 465nm Blue |
| Features | - |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | 4-SMD |
| Size / Dimension | 0.80mm L x 0.80mm W |
| Height (Max) | 0.90mm |
| Base Product Number | SML-LX0303 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

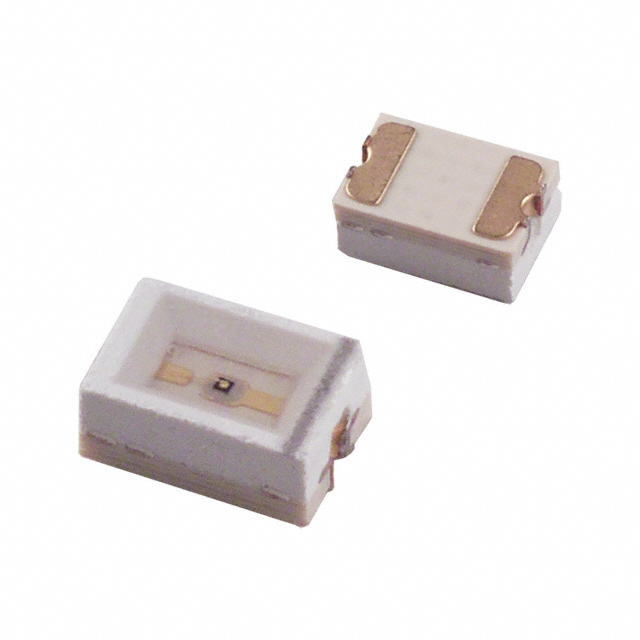

| Part Number | SML-LX0303RGBC/1TR | SML-010DTT86 | SML-010DTT87 | SML-010FTT86 |
| Manufacturer | Lumex Opto/Components Inc. | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RGB CLEAR SMD | LED ORANGE CLEAR 3020 SMD | LED ORANGE CLEAR 3020 SMD | LED GREEN CLEAR 3020 SMD |
| Series | Lumex Opto/Components Inc. | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
