SMM02040E5621BB100

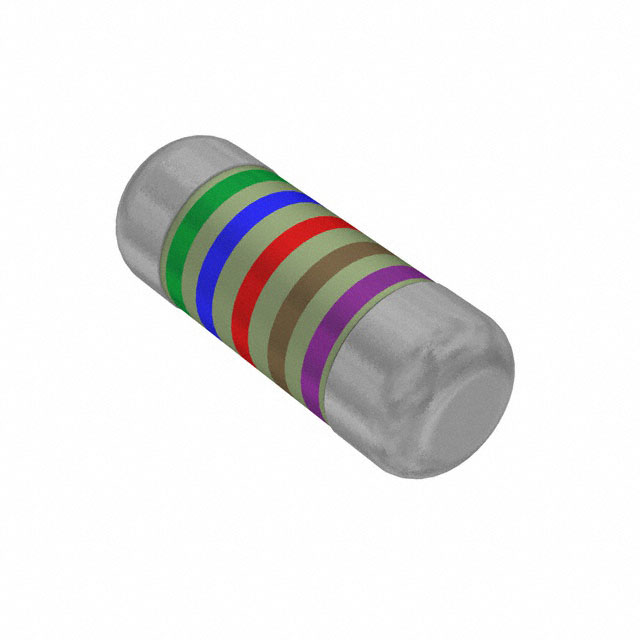

lmages are for reference only.SMM02040E5621BB100
SMM0204 15 5K62 0,1% B1
DatasheetMELF, 0204
50,814 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5.62 kOhms ±0.1% 0.25W, 1/4W Chip Resistor MELF, 0204 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thin Film
SMM02040E5621BB100
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | SMM0204 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 5.62 kOhms |
| Tolerance | ±0.1% |
| Power (Watts) | 0.25W, 1/4W |
| Composition | Thin Film |
| Features | Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding |
| Temperature Coefficient | ±15ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | MELF, 0204 |
| Supplier Device Package | 0204 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.055" Dia x 0.142" L (1.40mm x 3.60mm) |
| Height - Seated (Max) | - |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
|
|
|
| Part Number | SMM02040E5621BB300 | SMM02040E5620BB100 | SMM02040E5620BB300 | SMM02040E5620CB300 |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 5.62KOHM 0.1% 1/4W MELF 0204 | SMM0204 15 562R 0,1% B1 | SMM0204 15 562R 0,1% B3 | SMM0204 15 562R 0,25% B3 |
| Series | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | ||
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) |
