Product CatalogPart Number
SMP-MAC-S
Manufacturer
American Opto Plus LEDDescription
LED AMBER PLCC4 4SMD
Datasheet
DatasheetPackage
4-SMD, J-Lead
In Stock
48,892 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SMP-MAC-S
SMP-MAC-S
lmages are for reference only.Payment Methods
Delivery Services
Amber 615nm LED Indication - Discrete 2.1V 4-SMD, J-Lead
Quick Inquiry
SMP-MAC-S
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | American Opto Plus LED |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | Amber |
| Configuration | - |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 1200mcd |
| Lens Style | Round with Flat Top |
| Lens Size | 2.20mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 615nm |
| Wavelength - Peak | 620nm |
| Features | - |
| Package / Case | 4-SMD, J-Lead |
| Supplier Device Package | 4-SMD |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Height (Max) | 2.10mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

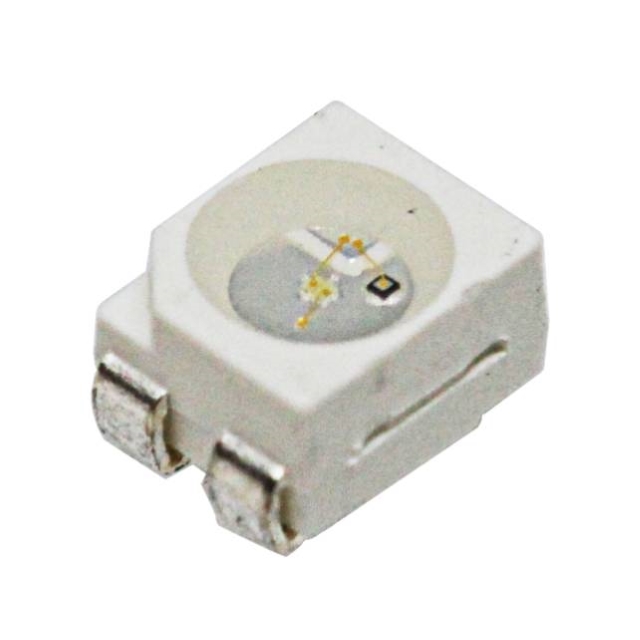

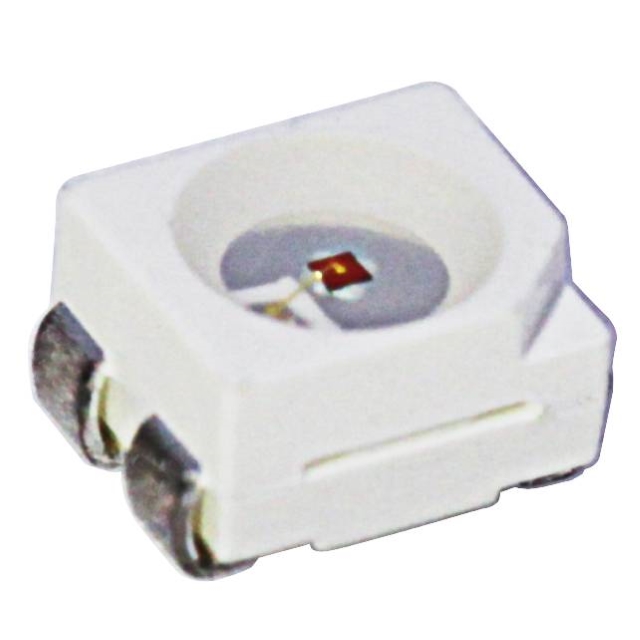

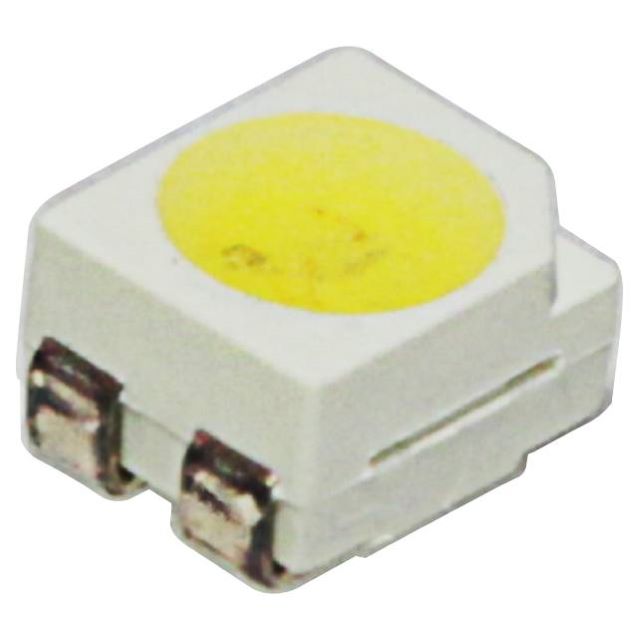

| Part Number | SMP-MPGC-ZS | SMP-MUBC-ZS | SMP-MWC-Z-TD | SMP-MYC-S |
| Manufacturer | American Opto Plus LED | American Opto Plus LED | American Opto Plus LED | American Opto Plus LED |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED GREEN PLCC4 4SMD | LED BLUE PLCC4 4SMD | LED WHITE PLCC4 4SMD | LED YELLOW 4SMD |
| Series | American Opto Plus LED | American Opto Plus LED | American Opto Plus LED | American Opto Plus LED |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
