SMPC78ANHM3/I

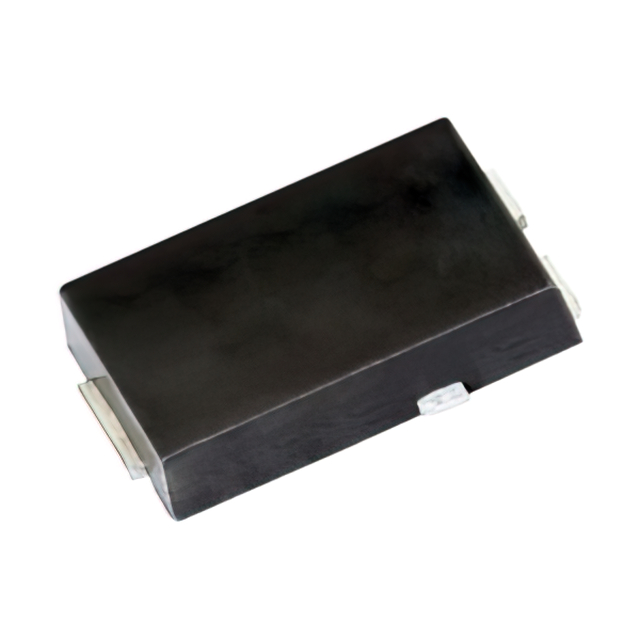

lmages are for reference only.SMPC78ANHM3/I
TVS DIODE 78VWM 126VC TO277A
DatasheetTO-277, 3-PowerDFN
55,618 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
126V Clamp 11.9A Ipp Tvs Diode Surface Mount TO-277A (SMPC)
SMPC78ANHM3/I
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | TransZorb® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 78V |
| Voltage - Breakdown (Min) | 86.7V |
| Voltage - Clamping (Max) @ Ipp | 126V |
| Current - Peak Pulse (10/1000µs) | 11.9A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | Telecom |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-277, 3-PowerDFN |
| Supplier Device Package | TO-277A (SMPC) |
| Base Product Number | SMPC78 |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
|
|
 |
| Part Number | SMPC78AN-M3/H | SMPC78AN-M3/I | SMPC78ANHM3/H | SMP11-E3/84A |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 78VWM 126VC TO277A | TVS DIODE 78VWM 126VC TO277A | TVS DIODE 78VWM 126VC TO277A | TVS DIODE 11VWM 20.1VC DO220AA |
| Series | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
