2200 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 113mOhm @ 120Hz 2000 Hrs @ 85°C
SMQ200VS222M30X50T2
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chemi-Con |
| Series | SMQ |
| Packaging | Tray |
| RoHS Status | RoHS non-compliant |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 113mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.92 A @ 120 Hz |
| Ripple Current @ High Frequency | 7.38 A @ 50 kHz |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Base Product Number | - |
| Impedance | - |
| Product Attribute | |
 |
 |
|

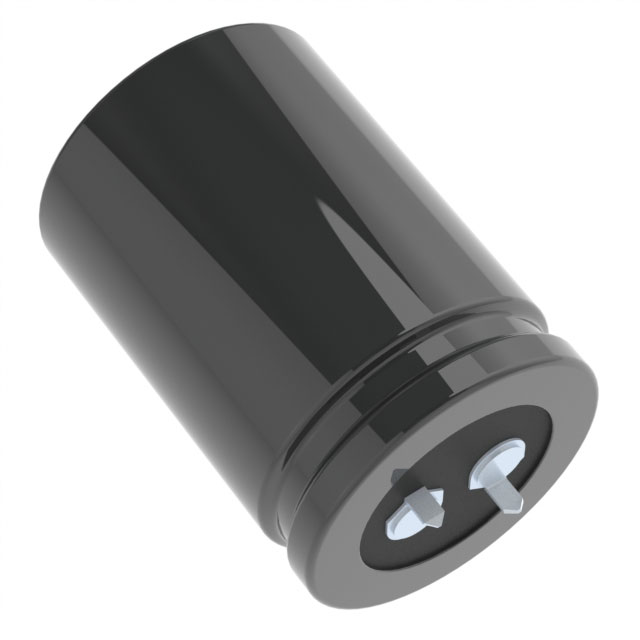

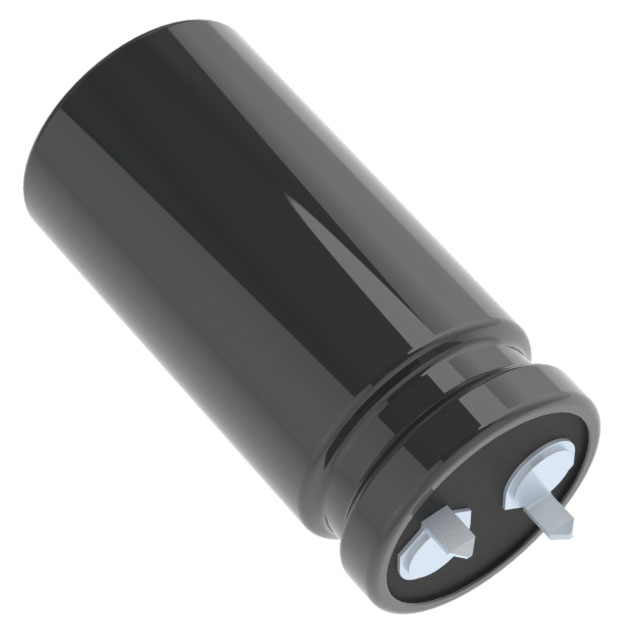

| Part Number | SMQ200VS222M35X40T2 | SMQ200VS272M35X50T2 | SMQ200VS102M22X45T2 | SMQ200VS102M25X35T2 |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | CAP ALUM 2200UF 20% 200V SNAP TH | CAP ALUM 2700UF 20% 200V SNAP TH | CAP ALUM 1000UF 20% 200V SNAP TH | CAP ALUM 1000UF 20% 200V SNAP TH |
| Series | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| Packaging | Tray | Tray | Tray | Tray |
