Product CatalogPart Number
SMS-R200-2.0
Manufacturer
Isabellenhuette USADescription
RESISTOR E
Datasheet
DatasheetPackage
2512 (6432 Metric)
In Stock
40,691 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SMS-R200-2.0
SMS-R200-2.0
lmages are for reference only.Payment Methods
Delivery Services
200 mOhms ±2% 5W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense, Pulse Withstanding Metal Foil
Quick Inquiry
SMS-R200-2.0
Specifications
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Isabellenhuette USA |
| Series | SMS |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Resistance | 200 mOhms |
| Tolerance | ±2% |
| Power (Watts) | 5W |
| Composition | Metal Foil |
| Features | Automotive AEC-Q200, Current Sense, Pulse Withstanding |
| Temperature Coefficient | 50ppm/°C |
| Operating Temperature | -65°C ~ 170°C |
| Package / Case | 2512 (6432 Metric) |
| Supplier Device Package | 2512 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.250" L x 0.120" W (6.35mm x 3.05mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | SMS-R200-0.5 | SMS-R200-1.0 | SMS-R200-1.0-EM | SMS-R220-0.5 |
| Manufacturer | Isabellenhuette USA | Isabellenhuette USA | Isabellenhuette USA | Isabellenhuette USA |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RESISTOR - ISA-PLAN SHUNT, 0.2, | RESISTOR - ISA-PLAN SHUNT, 0.2, | RESISTOR - AEROSPACE RATED ISA-P | RESISTOR - ISA-PLAN SHUNT, 0.22, |
| Series | Isabellenhuette USA | |||
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
SMS-R000
Isabellenhuette USA
SMS-R005-1.0
Isabellenhuette USA
SMS-R005-5.0
Isabellenhuette USA
SMS-R0056-5.0
Isabellenhuette USA
SMS-R0068-1.0
Isabellenhuette USA
SMS-R0075-1.0
Isabellenhuette USA
SMS-R008-1.0
Isabellenhuette USA
SMS-R009-1.0
Isabellenhuette USA
SMS-R010-1.0
Isabellenhuette USA
SMS-R010-1.0-EM
Isabellenhuette USA
SMS-R012-1.0
Isabellenhuette USA

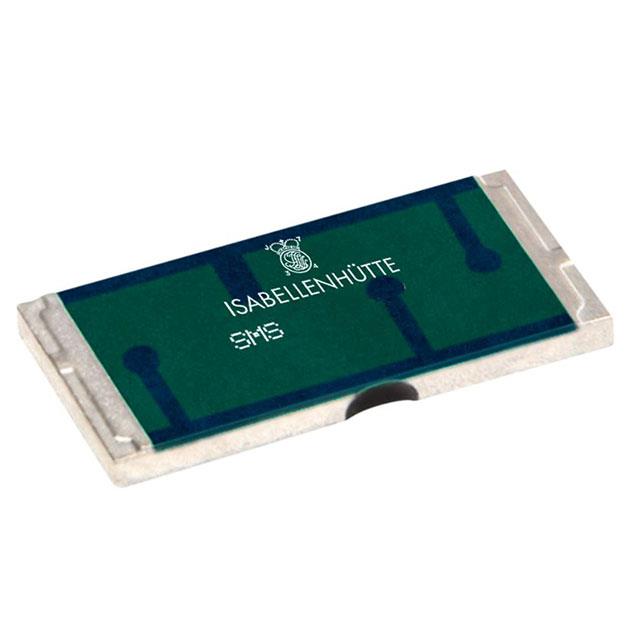

SMS-R0125-1.0
