Product CatalogPart Number
SMS24GE4J
Manufacturer
Souriau-Sunbank by EatonDescription
CONN HEADER VERT 24POS 5.08MM
Datasheet
DatasheetPackage
-
In Stock
23,056 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

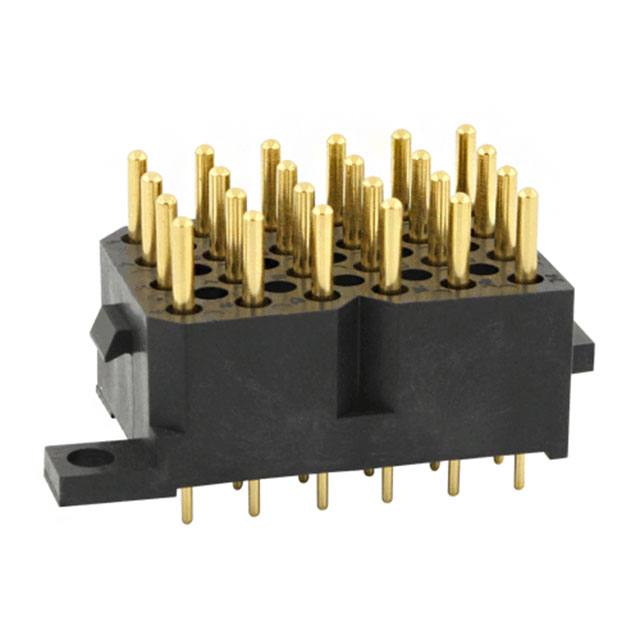

SMS24GE4J
SMS24GE4J
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Through Hole 24 position 0.200" (5.08mm)
Quick Inquiry
SMS24GE4J
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Souriau-Sunbank by Eaton |
| Series | SMS |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.200" (5.08mm) |
| Number of Positions | 24 |
| Number of Rows | 6 |
| Row Spacing - Mating | 0.200" (5.08mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | 0.280" (7.11mm) |
| Contact Length - Post | 0.138" (3.50mm) |
| Overall Contact Length | 0.939" (23.85mm) |
| Insulation Height | 0.526" (13.35mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | - |
| Contact Material | Brass |
| Insulation Material | Polyester, Glass Filled |
| Features | Mounting Flange |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 7.5A |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | SMS24G |
