Product CatalogPart Number
SMS36RDH1
Manufacturer
Souriau-Sunbank by EatonDescription
CONN RCPT HSG 36POS 5.08MM
Datasheet
DatasheetPackage
-
In Stock
91,727 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SMS36RDH1
SMS36RDH1
lmages are for reference only.Payment Methods
Delivery Services
36 Rectangular Connectors - Housings Receptacle 0.200" (5.08mm)
Quick Inquiry
SMS36RDH1
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings |
| Manufacturer | Souriau-Sunbank by Eaton |
| Series | SMS |
| Packaging | - |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Receptacle |
| Contact Type | Male or Female |
| Number of Positions | 36 |
| Pitch | 0.200" (5.08mm) |
| Number of Rows | 4 |
| Row Spacing | 0.200" (5.08mm) |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Fastening Type | Locking Ramp |
| Color | - |
| Features | Strain Relief |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Operating Temperature | -40°C ~ 105°C |
| Base Product Number | SMS36R |
Parts with Similar Specifications
| Product Attribute | |
 |
|
 |
| Part Number | SMS36RDH1 | SMS36R-1 | SMS36R-1 | SMS36R3S6 |
| Manufacturer | Souriau-Sunbank by Eaton | Souriau-Sunbank by Eaton | Souriau-Sunbank by Eaton | Souriau-Sunbank by Eaton |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN RCPT HSG 36POS 5.08MM | CONN RCPT HSG 36POS 5.08MM | CONN RCPT HSG 36POS 5.08MM | CONN RCPT HSG 36POS |
| Series | Souriau-Sunbank by Eaton | Souriau-Sunbank by Eaton | Souriau-Sunbank by Eaton | Souriau-Sunbank by Eaton |
| Packaging | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products

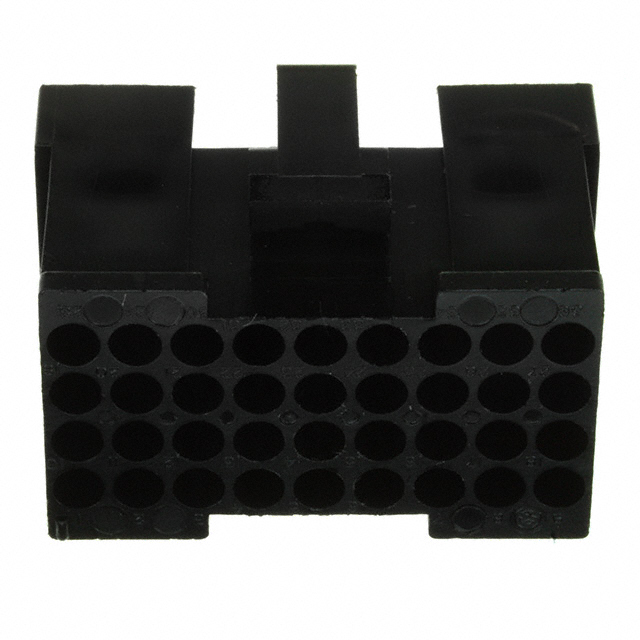

SMS36P-1
