SMT-R022-1.0
Manufacturer
Isabellenhuette USADescription
RESISTOR - ISA-PLAN SHUNT, 0.022
Datasheet
DatasheetPackage
Nonstandard
In Stock
63,093 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SMT-R022-1.0
SMT-R022-1.0
lmages are for reference only.Payment Methods
Delivery Services

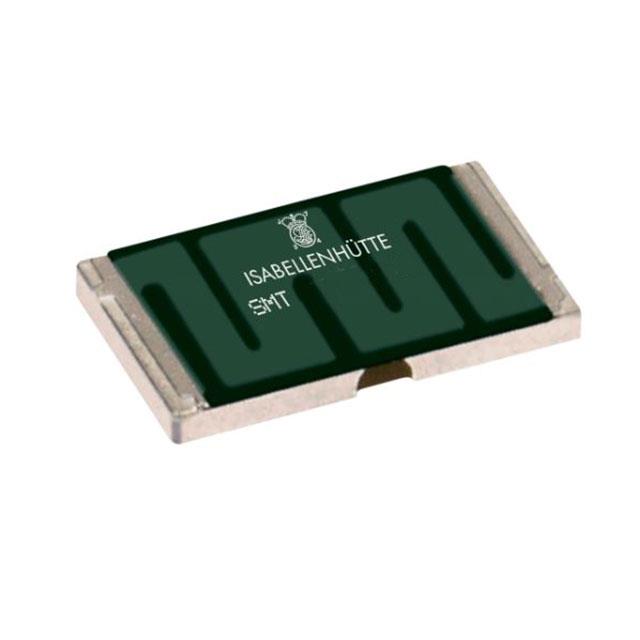

22 mOhms ±1% 7W Chip Resistor Nonstandard Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Quick Inquiry
SMT-R022-1.0
Specifications
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Isabellenhuette USA |
| Series | |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Mfr | Isabellenhuette USA |
| Series | SMT |
| Resistance | 22 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 7W |
| Composition | - |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient | ±50ppm/°C |
| Operating Temperature | -65°C ~ 170°C |
| Package / Case | Nonstandard |
| Supplier Device Package | 2817 |
| Ratings | - |
| Size / Dimension | 0.280" L x 0.165" W (7.10mm x 4.20mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
