SN74ACT1284PW

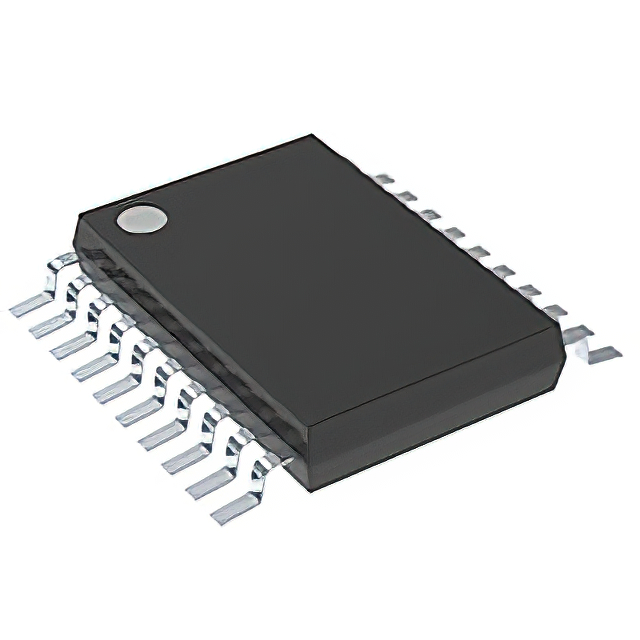

lmages are for reference only.SN74ACT1284PW
IC 7BIT BUS INTERFC 3ST 20-TSSOP
Datasheet20-TSSOP (0.173", 4.40mm Width)
98,201 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IEEE STD 1284 Translation Transceiver IC 20-TSSOP
SN74ACT1284PW
| Category | Integrated Circuits (ICs) - Logic - Specialty Logic |
| Manufacturer | Texas Instruments |
| Series | 74ACT |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Logic Type | IEEE STD 1284 Translation Transceiver |
| Supply Voltage | 4.5V ~ 5.5V |
| Number of Bits | 7 |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
| Base Product Number | 74ACT1284 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SN74ACT1284PWE4 | SN74ACT1284PWG4 | SN74ACT1284PWR | SN74ACT1284DBR |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC 7BIT BUS INTERFC 3ST 20-TSSOP | IC BUS INTERFACE 20TSSOP | IC 7-BIT BUS INTERFACE 20-TSSOP | IC 7-BIT BUS INTERFACE 20-SSOP |
| Series | 74ACT | 74ACT | 74ACT | 74ACT |
| Packaging | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
