SN74ACT86NSR

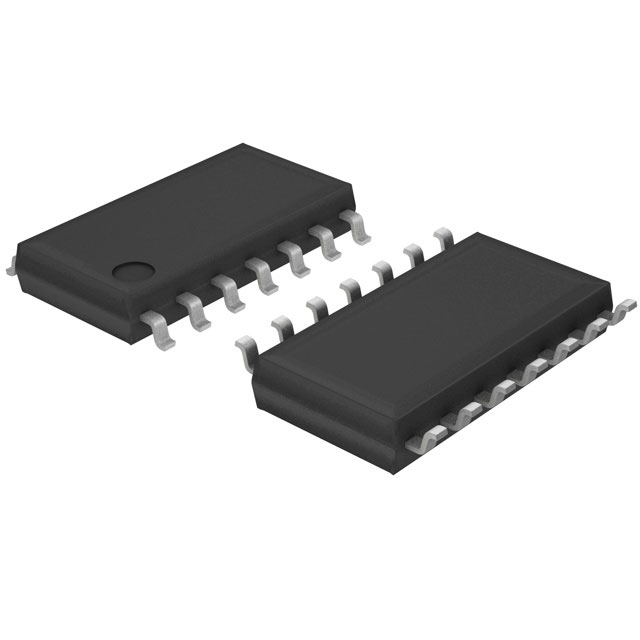

lmages are for reference only.SN74ACT86NSR
IC GATE XOR 4CH 2-INP 14SO
Datasheet14-SOIC (0.209", 5.30mm Width)
27,689 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
XOR (Exclusive OR) IC 4 Channel 14-SO
SN74ACT86NSR
| Category | Integrated Circuits (ICs) - Logic - Gates and Inverters |
| Manufacturer | Texas Instruments |
| Series | 74ACT |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | 74ACT86 |
| Logic Type | XOR (Exclusive OR) |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 4 μA |
| Current - Output High, Low | 24mA, 24mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 9.5ns @ 5V, 50pF |
| Operating Temperature | -40＜C ~ 85＜C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SO |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SN74ACT86NSRG4 | SN74ACT86D | SN74ACT86DBR | SN74ACT86DR |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC GATE XOR 4CH 2-INP 14SO | IC GATE XOR 4CH 2-INP 14SOIC | IC GATE XOR 4CH 2-INP 14SSOP | IC GATE XOR 4CH 2-INP 14SOIC |
| Series | 74ACT | 74ACT | 74ACT | 74ACT |
| Packaging | Tape & Reel (TR) | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
