SN74HC02ANSR

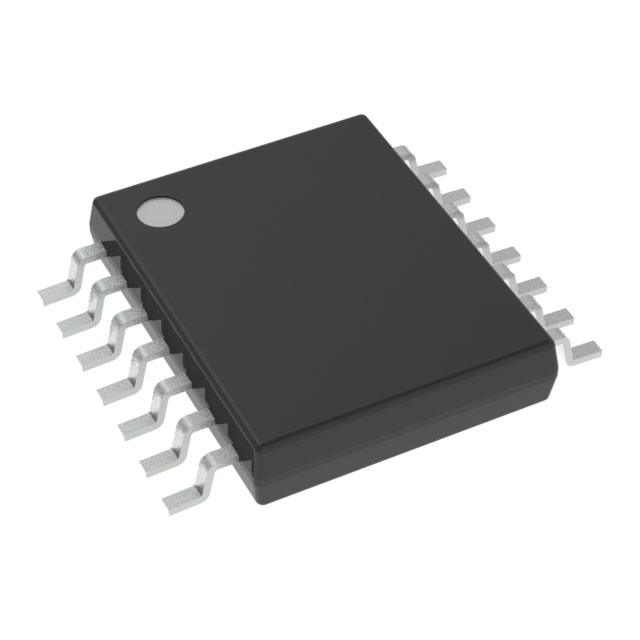

lmages are for reference only.SN74HC02ANSR
IC GATE NOR 4CH 2-INP 14SO
Datasheet14-SOIC (0.209", 5.30mm Width)
39,513 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
NOR Gate IC 4 Channel 14-SO
SN74HC02ANSR
| Category | Integrated Circuits (ICs) - Logic - Gates and Inverters |
| Manufacturer | Texas Instruments |
| Series | 74HC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | 74HC02 |
| Logic Type | NOR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Input Logic Level - Low | 0.1V ~ 0.26V |
| Input Logic Level - High | 1.9V ~ 5.9V |
| Max Propagation Delay @ V, Max CL | 13ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SO |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SN74HC02AN | SN74HC02APWR | SN74HC00AN | SN74HC00ANS |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC GATE NOR 4CH 2-INP 14DIP | IC GATE NOR 4CH 2-INP 14TSSOP | IC GATE NAND 4CH 2-INP 14DIP | IC GATE NAND 4CH 2-INP 14SO |
| Series | 74HC | 74HC | 74HC | 74HC |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Bulk |
