SNG-SPRC-002
lmages are for reference only.SNG-SPRC-002
MAGNETIC SWITCH UNIPOLAR
DatasheetModule
55,890 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Digital Switch Unipolar Switch Open Collector Hall Effect
SNG-SPRC-002
| Category | Sensors, Transducers - Magnetic Sensors - Switches Solid State |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | SNG-S |
| Packaging | Box |
| RoHS Status | |
| Function | Unipolar Switch |
| Technology | Hall Effect |
| Polarization | - |
| Sensing Range | - |
| Test Condition | - |
| Voltage - Supply | 4.8V ~ 16V |
| Current - Supply (Max) | 15mA |
| Current - Output (Max) | 20mA |
| Output Type | Open Collector |
| Features | - |
| Operating Temperature | -40°C ~ 140°C |
| Mounting Type | Chassis Mount |
| Supplier Device Package | - |
| Package / Case | Module |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

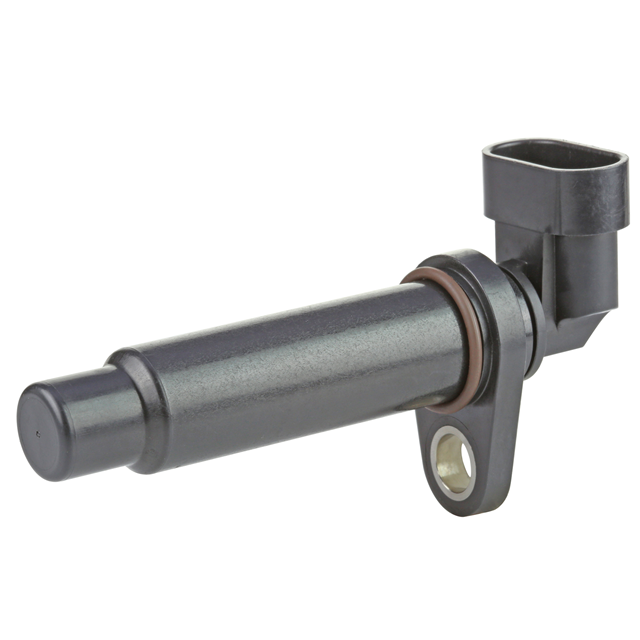

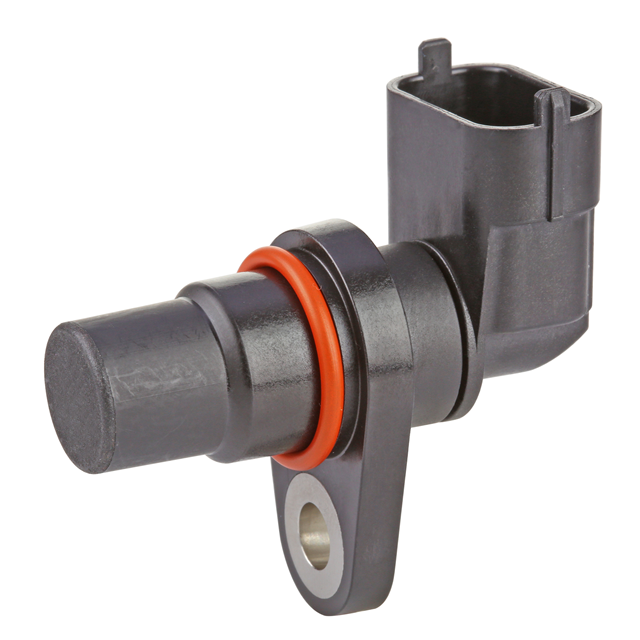

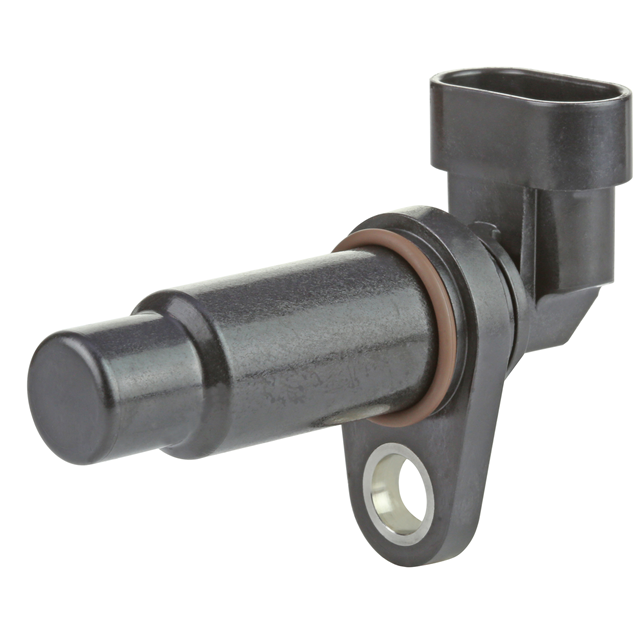

| Part Number | SNG-SPRC-003 | SNG-SPRD-003 | SNG-SPRD-004 | SNG-SPRF-002 |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | ||||
| Description | MAGNETIC SWITCH UNIPOLAR | MAGNETIC SWITCH UNIPOLAR | MAGNETIC SWITCH UNIPOLAR | MAGNETIC SWITCH UNIPOLAR |
| Series | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| Packaging | Box | Box | Box | Box |
