SP1-12
lmages are for reference only.SP1-12
SENSOR LINEAR 317MM SOLDER LUG
DatasheetBox with Connector
14,452 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Resistive Sensor Linear Position String Potentiometer Solder Lug
SP1-12
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | TE Connectivity Measurement Specialties |
| Series | SP1 |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| For Measuring | Linear Position |
| Technology | Resistive |
| Rotation Angle - Electrical, Mechanical | - |
| Linear Range | 0 ~ 317mm (0 ~ 12.5") |
| Output | Analog Voltage |
| Output Signal | - |
| Actuator Type | String Potentiometer |
| Linearity | - |
| Resistance | 10 kOhms |
| Resistance Tolerance | ±10% |
| Voltage - Supply | 30V |
| Mounting Type | Panel Mount |
| Termination Style | Solder Lug |
| Operating Temperature | -18°C ~ 70°C |
| Package / Case | Box with Connector |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Base Product Number | SP1 |
| Product Attribute |  |
 |
 |
 |
| Part Number | SP1-12-3 | SP1-25 | SP1-4 | SP1-50 |
| Manufacturer | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

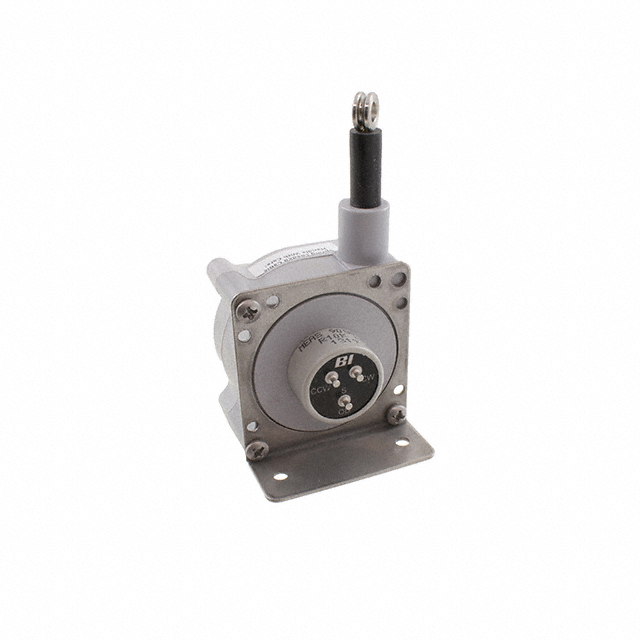

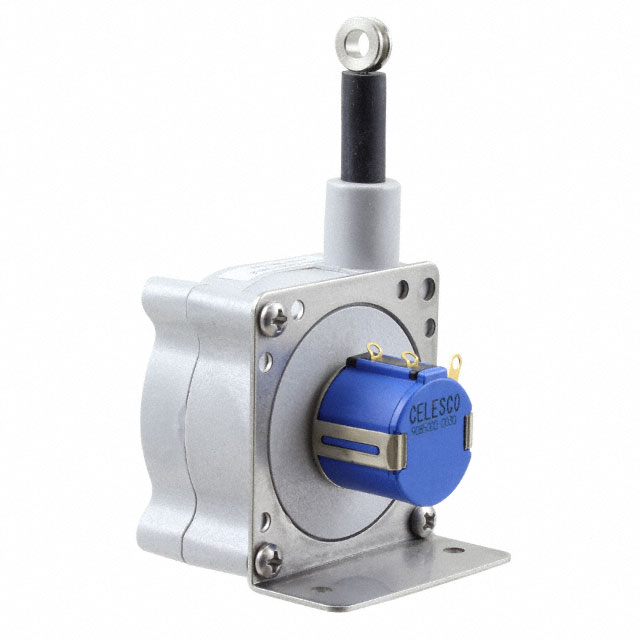

| Description | STRING POT 12.5 INCH RANGE W/CON | SENSOR LINEAR 635MM SOLDER LUG | SENSOR LINEAR 120MM SOLDER LUG | SENSOR LINEAR 1270MM SOLDER LUG |
| Series | - | SP1 | SP1 | SP1 |
| Packaging | Bulk | Box | Box | Box |
