SP3-50
lmages are for reference only.SP3-50
STRING POT 50 INCH RANGE
DatasheetBox with Connector
62,411 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Sensor Linear Position String Potentiometer Wire Leads
SP3-50
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | TE Connectivity Measurement Specialties |
| Series | SP3 |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| For Measuring | Linear Position |
| Technology | - |
| Rotation Angle - Electrical, Mechanical | - |
| Linear Range | 0 ~ 1270.00mm (0 ~ 50.00") |
| Output | 0V ~ 10V, 4mA ~ 20mA |
| Output Signal | - |
| Actuator Type | String Potentiometer |
| Linearity | ±0.25% |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 8V, 12V ~ 32V, 40V |
| Mounting Type | Chassis Mount |
| Termination Style | Wire Leads |
| Operating Temperature | -18°C ~ 71°C |
| Package / Case | Box with Connector |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

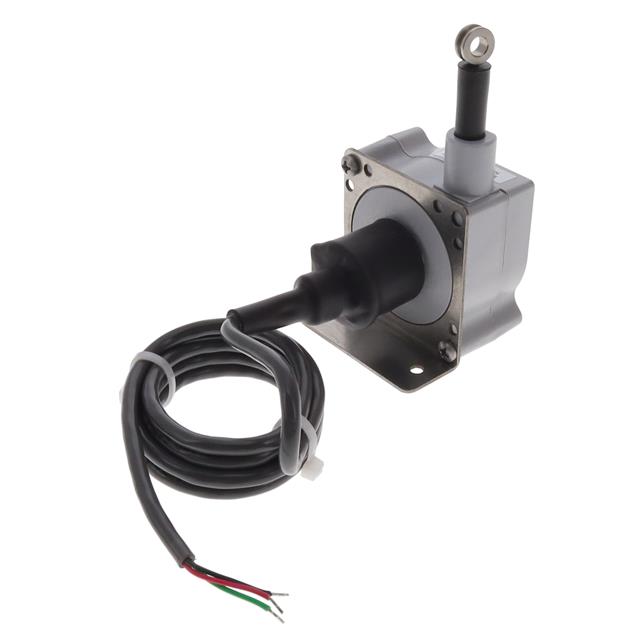

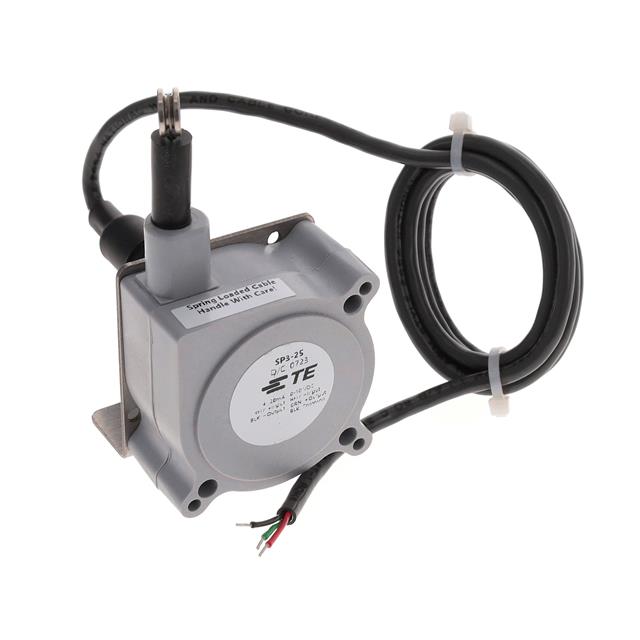

| Part Number | SP3-12 | SP3-25 | MLX90513GGO-CAA-100-SP | HP-L-1000-203-3%-RLD |
| Manufacturer | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties | Melexis Technologies NV | Spectra Symbol |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | POT STRING 12.5 INCH | STRING POT 25 INCH RANGE | INDUCTIVE POSITION SENSOR ASSP W | SENSOR LINEAR 1000MM CONNECTOR |
| Series | SP1 | SP3 | - | HotPot |
| Packaging | Bulk | Box | Bulk | Box |
